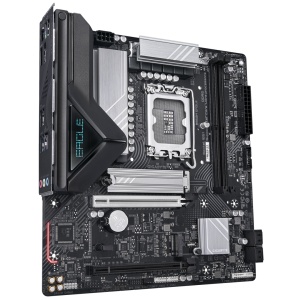

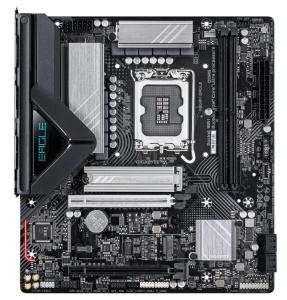

Placa de Baza GIGABYTE B860M EAGLE LGA1851
808 01 RON
(TVA inclus)
817 38 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE B860M EAGLE LGA1851, 2x DDR5, 1x HDMI 1x DP, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B860M EAGLE
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Country of origin
China
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Maximum internal memory
128 GB
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi
No
PCI Express x16 (Gen 5.x) slots
1
USB 2.0 ports quantity
3
Line-in
Yes
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Headphone outputs
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
S/PDIF out connector
Yes
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
ECC сompatibility
ECC & Non-ECC
Maximum internal memory per slot
64 GB
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DVI-D ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
1
Number of HDDs supported
4
RAID levels
0, 1, 5, 10
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Height
35 mm
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
Number of RGB LED pin headers
3
Number of EPS power connectors (8-pin)
1
Number of memory slots
2
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Number of storage drives supported
6
Width
244 mm
1st M.2 highest PCI Express generation
5.0
Motherboard chipset
Intel B860
Product colour
Brown
Maximum resolution
4096 x 2160 pixels
Supported memory clock speed (max)
9066 MHz
Supported memory clock speeds
5600,6400,9066 MHz
Package depth
265 mm
Package width
265 mm
Package height
54 mm
DisplayPort version
2.1
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Serial port headers
1
Weight
1.1 kg
Depth
225 mm
