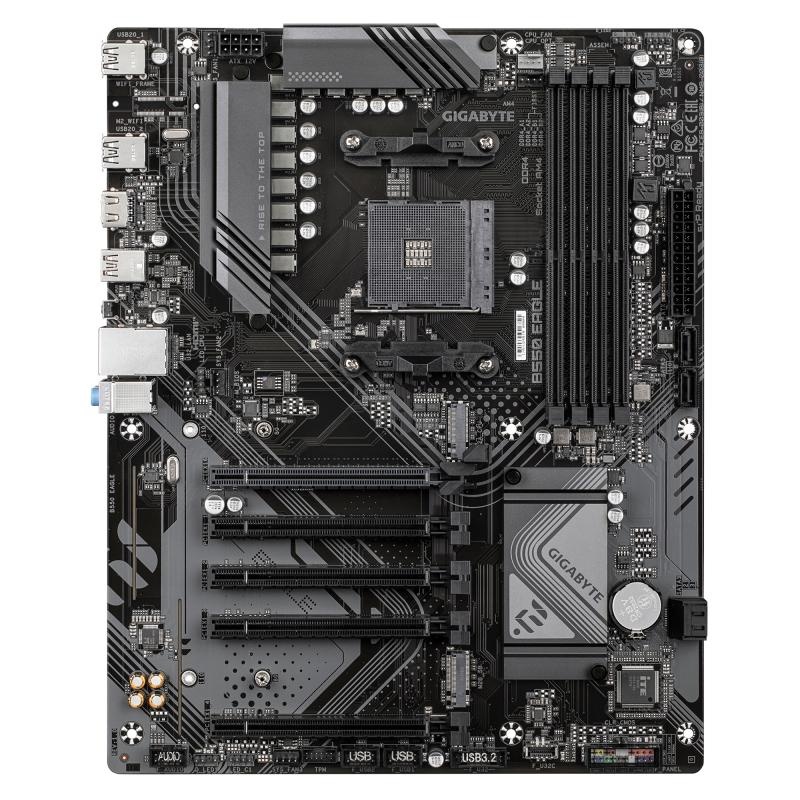

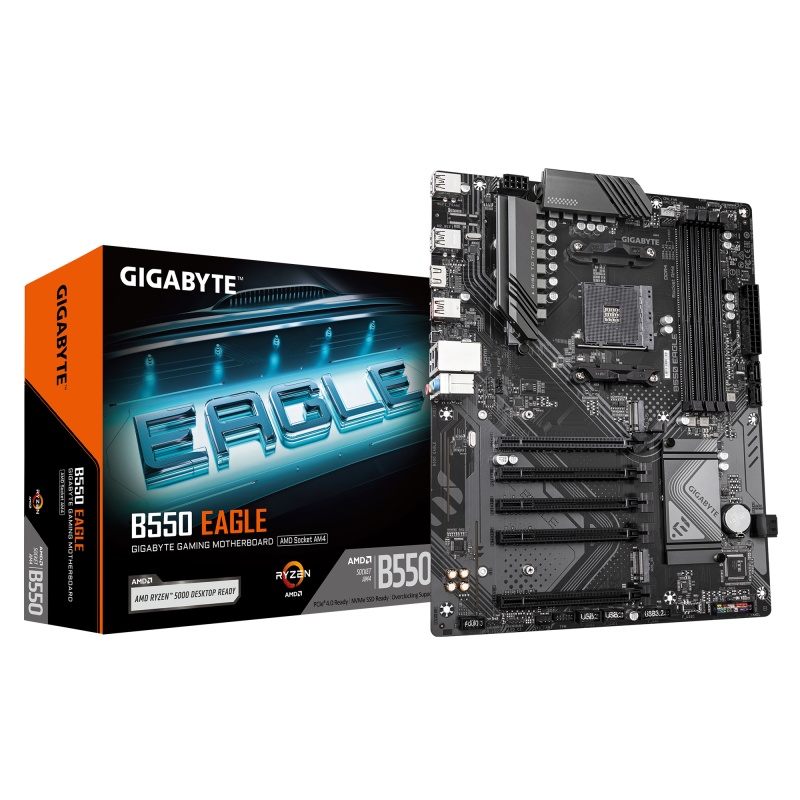

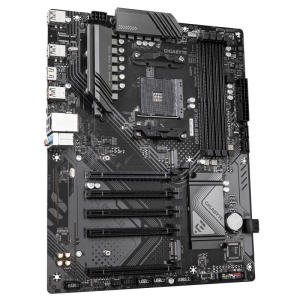

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX
499 52 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
B550 EAGLE
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Maximum internal memory
128 GB
Processor manufacturer
AMD
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi
No
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
Headphone outputs
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
22110
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
ECC сompatibility
ECC & Non-ECC
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
VGA (D-Sub) ports quantity
0
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
Height
35 mm
Number of M.2 (M) slots
2
Number of EPS power connectors (8-pin)
1
Ethernet interface type
Gigabit Ethernet
Number of storage drives supported
6
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Number of chassis fan connectors
3
Maximum resolution
4096 x 2160 pixels
Motherboard chipset family
AMD
Number of water pump connectors
1
2nd M.2 largest key size
22110
RAID levels
0, 1, 10
Supported memory types
DDR4-SDRAM
BIOS memory size
128 Mbit
Motherboard chipset
AMD B550
Processor socket
Socket AM4
Cooling type
Passive
Product colour
Dark brown
PCI Express x1 (Gen 3.x) slots
4
2nd M.2 highest PCI Express generation
3.0
Number of RGB LED pin headers
5
Supported memory clock speed (max)
3200 MHz
Maximum internal memory per slot
32 GB
Supported memory clock speeds
3200,2933,2667,2400,2133 MHz
LAN controller
Realtek RTL8111H
Weight
1.25 kg
Package weight
1.48 kg
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
USB3
4-8
PCI-Ex1
0
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
PCI-Ex16
5
