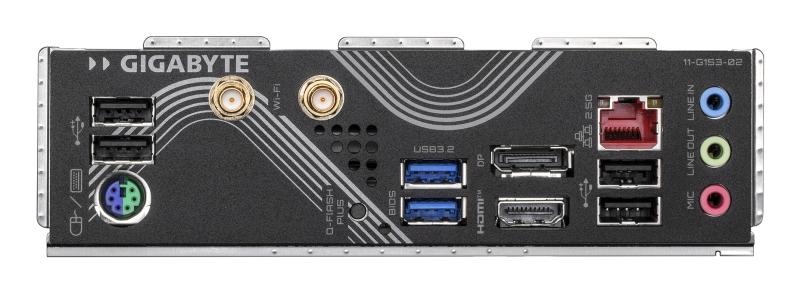

• Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX - Img 1

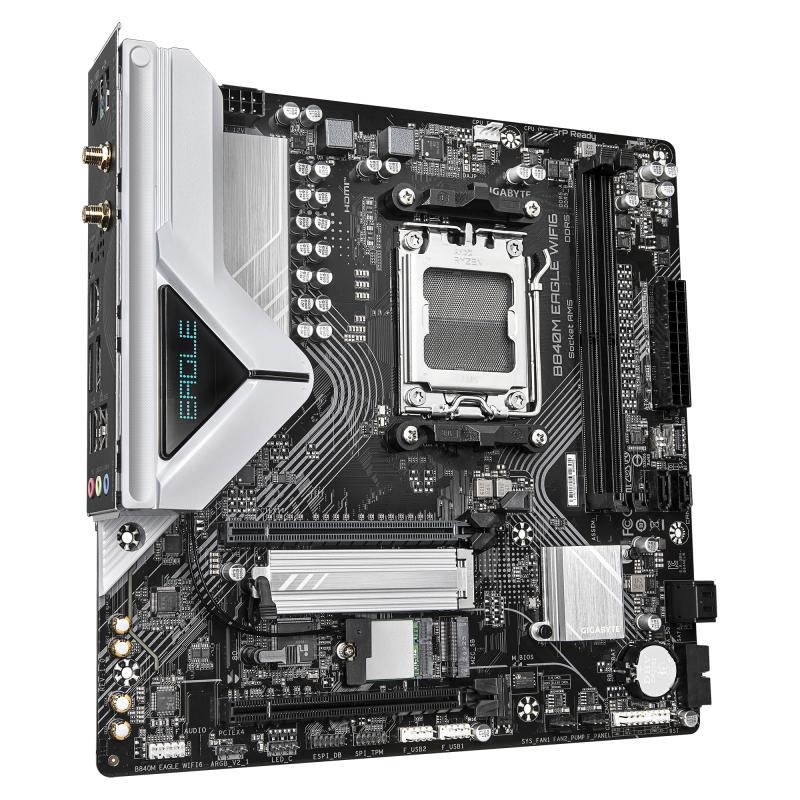

  • Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX - Img 2

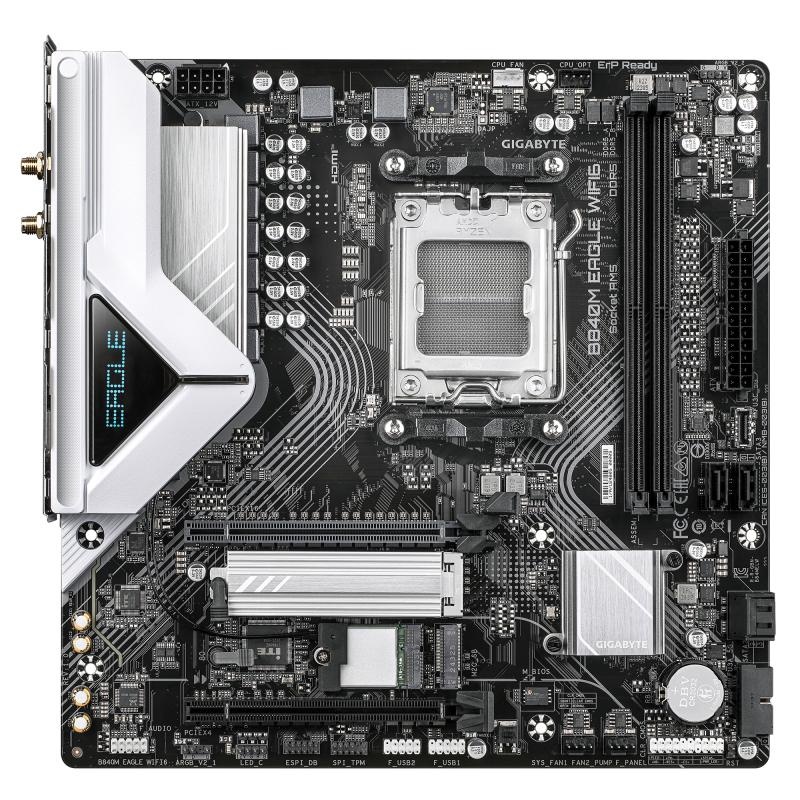

  • Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX - Img 3

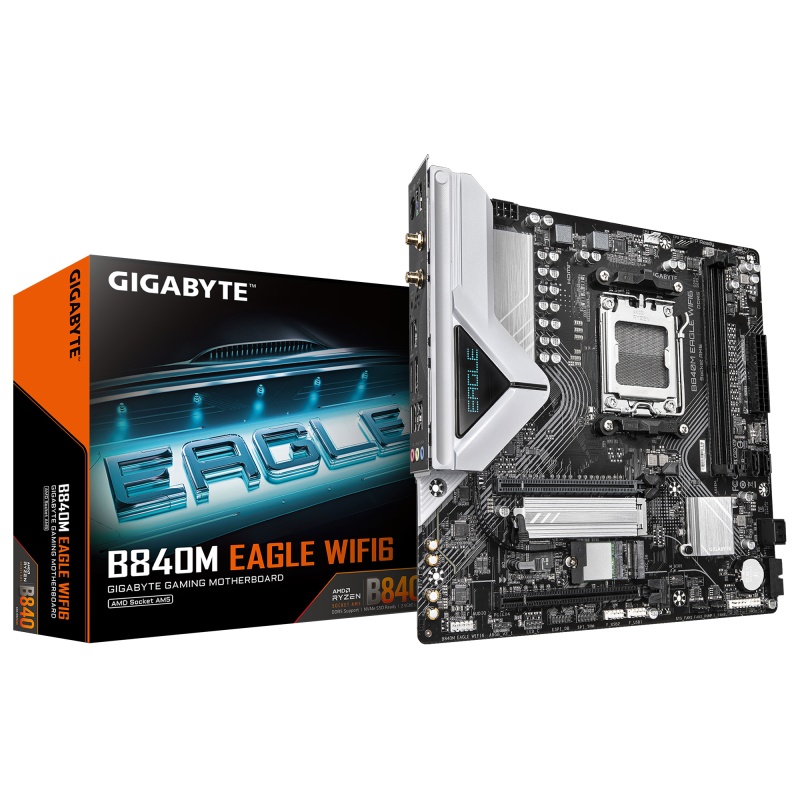

  • Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX - Img 4

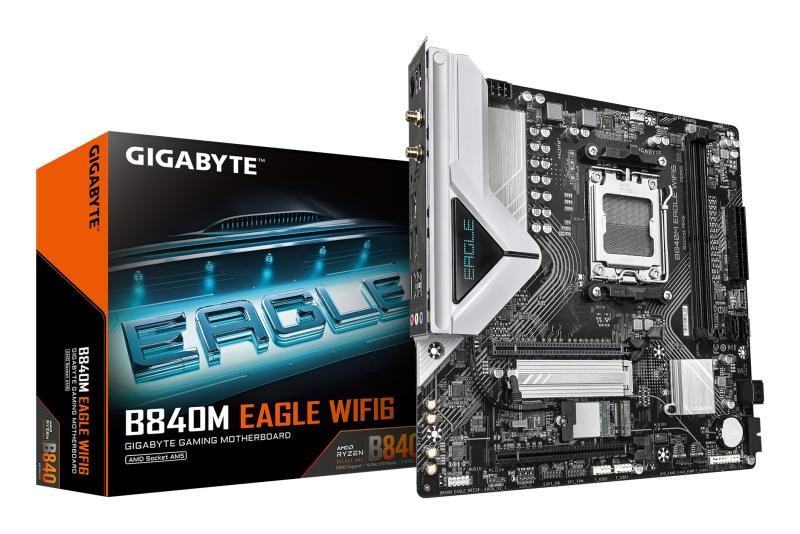

  • Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX - Img 5

Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

704 56 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU B840M EAGLE WIFI6
Disponibil in stoc
Adauga la Favorite

Descriere

Placa de Baza GIGABYTE B840M EAGLE WIFI6 AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Detalii

SKU
B840M EAGLE WIFI6
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Bluetooth
Yes
Bluetooth version
5.3
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Maximum internal memory
128 GB
Wi-Fi
Yes
Processor manufacturer
AMD
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
Headphone outputs
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 3.x) slots
1
2nd M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory clock speed (max)
7600 MHz
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty period
3 year(s)
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
1
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Depth
244 mm
Height
35 mm
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
Number of RGB LED pin headers
3
Number of EPS power connectors (8-pin)
1
ECC сompatibility
Non-ECC
Number of memory slots
2
Package width
270 mm
Number of storage drives supported
6
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
12V power connector
Yes
Antenna included
Yes
Maximum resolution
4096 x 2160 pixels
Motherboard chipset family
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
RAID levels
0, 1, 10
Package height
68 mm
Package depth
268 mm
1st M.2 largest key size
2580
Cooling type
Passive
Product colour
Dark brown
2nd M.2 highest PCI Express generation
3.0
WLAN controller model
Realtek RTL8851BE
Motherboard chipset
AMD B840
MB-Format
micro-ATX
USB3
4-8
PCI-Ex1
0
RAM-Slots
4
MB-Socket
AM5
PCI-Ex16
2
Supported memory clock speeds
7600,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Weight
1.22 kg
Package weight
1.31 kg
