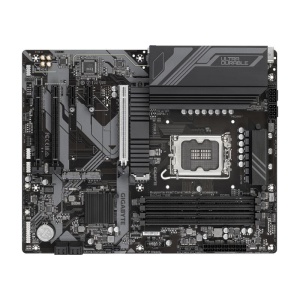

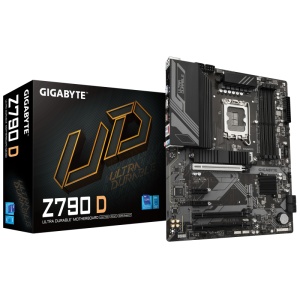

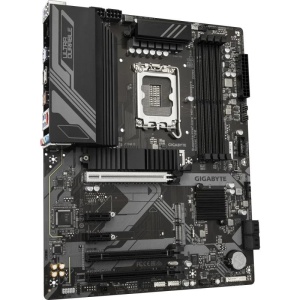

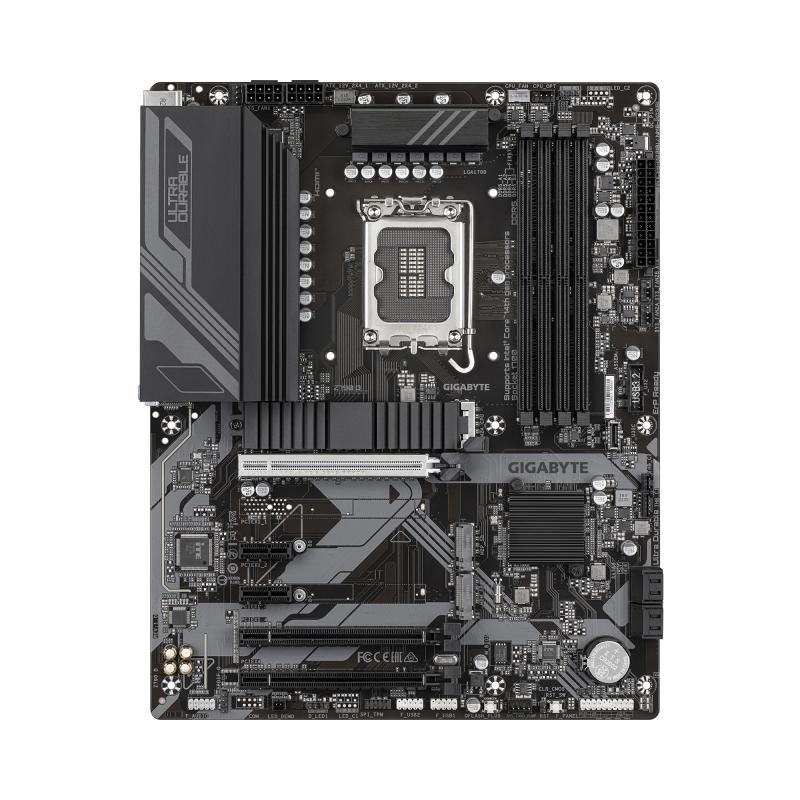

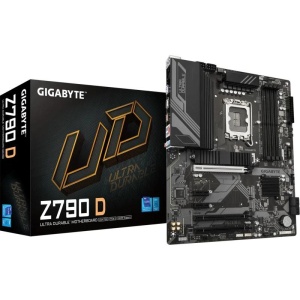

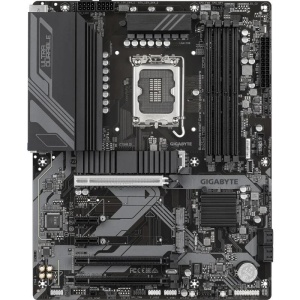

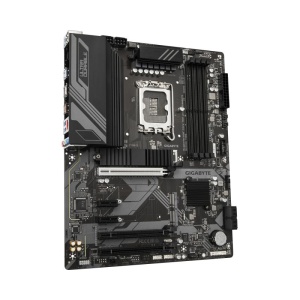

Placa de baza GIGABYTE Z790 D LGA1700
851 03 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Placa de baza GIGABYTE Z790 D LGA1700, 4x DDR5, 1x HDMI 1x DP, 3x PCIE x16 2x PCIE x1, 3x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
Z790 D
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Country of origin
China
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi
No
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Headphone outputs
1
Maximum internal memory supported by processor
192 GB
Maximum internal memory
192 GB
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
3
Motherboard form factor
ATX
Motherboard chipset family
Intel
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Parallel processing technology support
Not supported
HDCP
Yes
Maximum resolution
4096 x 2304 pixels
DirectX version
12.0
Thunderbolt headers
2
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 2.0 connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
ECC сompatibility
ECC & Non-ECC
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory clock speed (max)
7600 MHz
Ethernet interface type
2.5 Gigabit Ethernet
Batteries included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
DisplayPort version
1.2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
VGA (D-Sub) ports quantity
0
Number of HDDs supported
4
Number of storage drives supported
7
RAID levels
0, 1, 5, 10
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
Height
35 mm
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Cables included
SATA
Antenna included
Yes
Product colour
Brown
Total number of SATA connectors
4
S/PDIF out port
Yes
WiFi-AP antenna jack
2
USB connector type
USB Type-A, USB Type-C
Clear CMOS button
Yes
Motherboard chipset
Intel Z790 Express
Maximum number of SMP processors
1
Discrete graphics support
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Package weight
1.8 kg
Number of EATX power connectors
2
Supported memory clock speeds
4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
