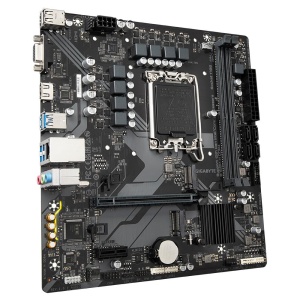

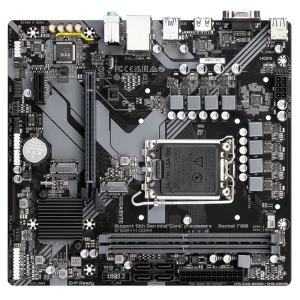

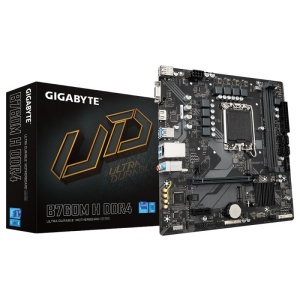

Placa de baza Gigabyte B760M H LGA1700
422 29 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere

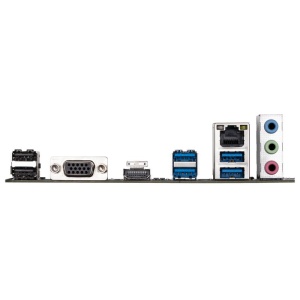

Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX
Detalii
SKU
B760M H DDR4
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Country of origin
China
Processor manufacturer
Intel
Maximum internal memory
64 GB
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Memory channels
Dual-channel
Depth
215 mm
HDMI version
1.4
Windows operating systems supported
Windows 10, Windows 11
RAID support
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi
No
DisplayPort version
1.4
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
Intel
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Memory slots type
DIMM
Batteries included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of HDDs supported
4
RAID levels
0, 1, 5, 10
Supported storage drive interfaces
M.2, SATA III
Height
35 mm
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
ECC сompatibility
Non-ECC
Number of memory slots
2
Ethernet interface type
Gigabit Ethernet
Number of storage drives supported
6
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Product colour
Brown
Package depth
265 mm
Package width
265 mm
Package height
54 mm
Serial port headers
1
Total number of SATA connectors
4
Supported memory types
DDR4-SDRAM
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum number of SMP processors
1
Compatible processor series
Intel Celeron, Intel Pentium Gold
BIOS memory size
128 Mbit
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Motherboard chipset
Intel B760 Express
Width
230 mm
DirectX version
12.1
Package weight
825 g
Maximum internal memory supported by processor
64 GB
