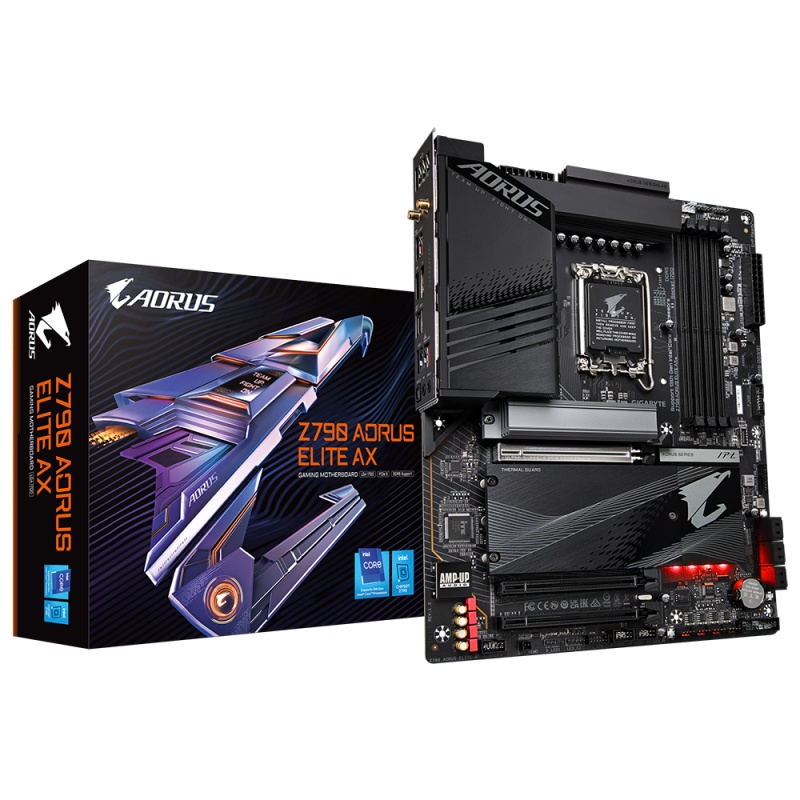

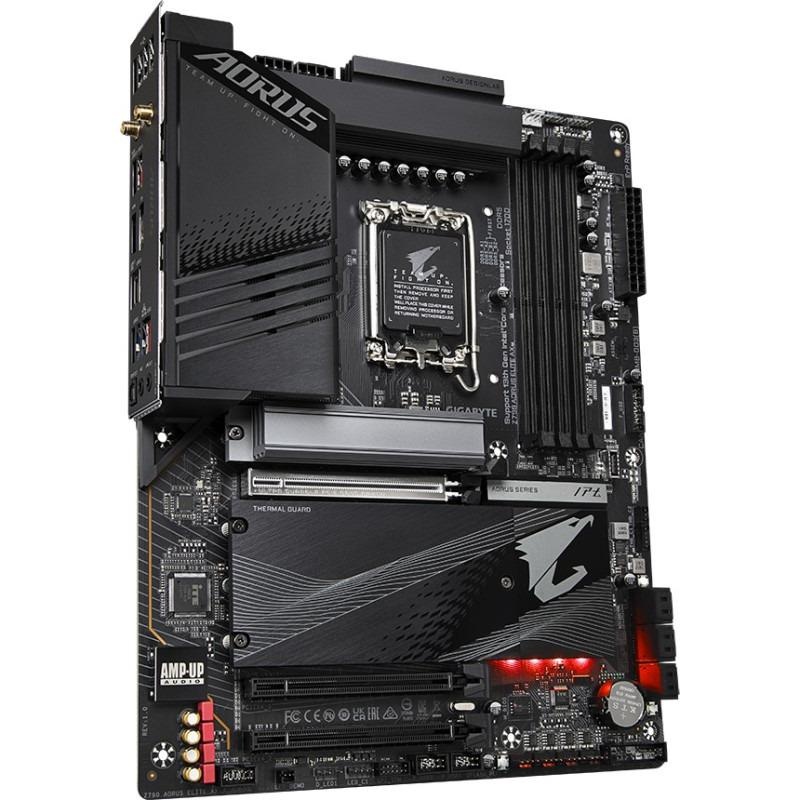

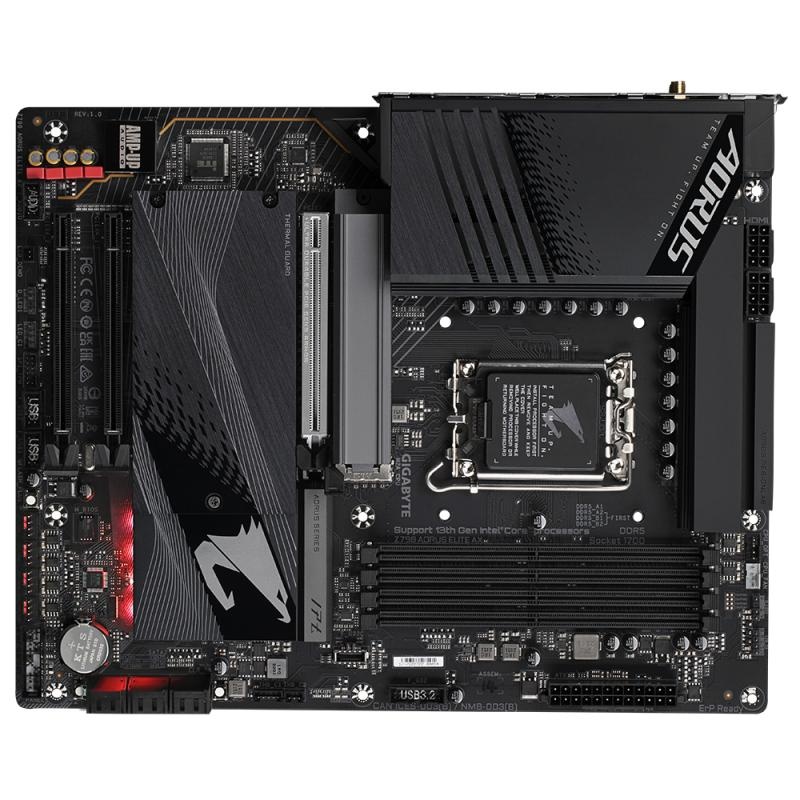

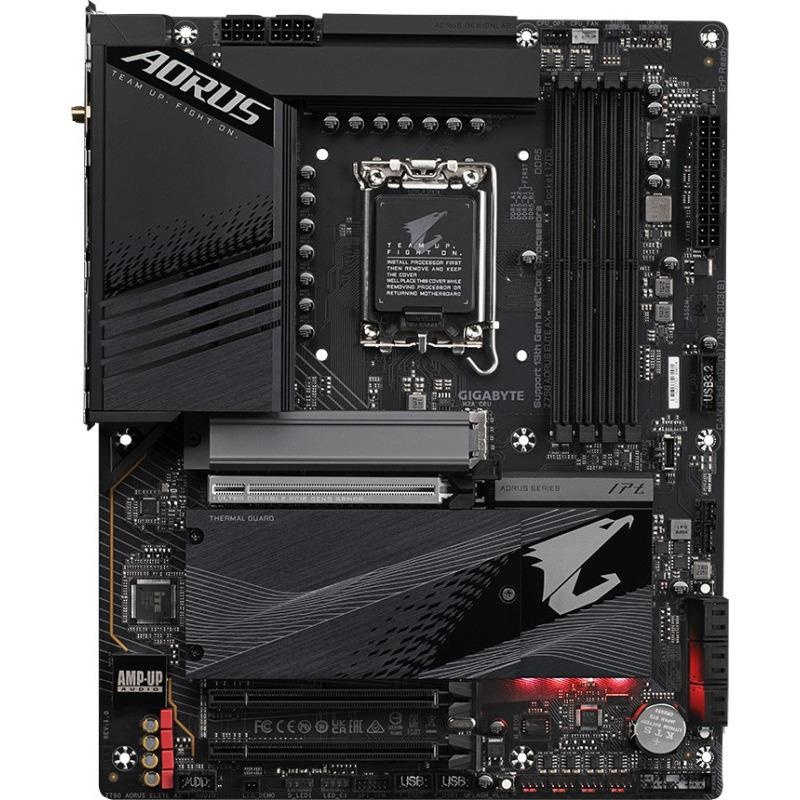

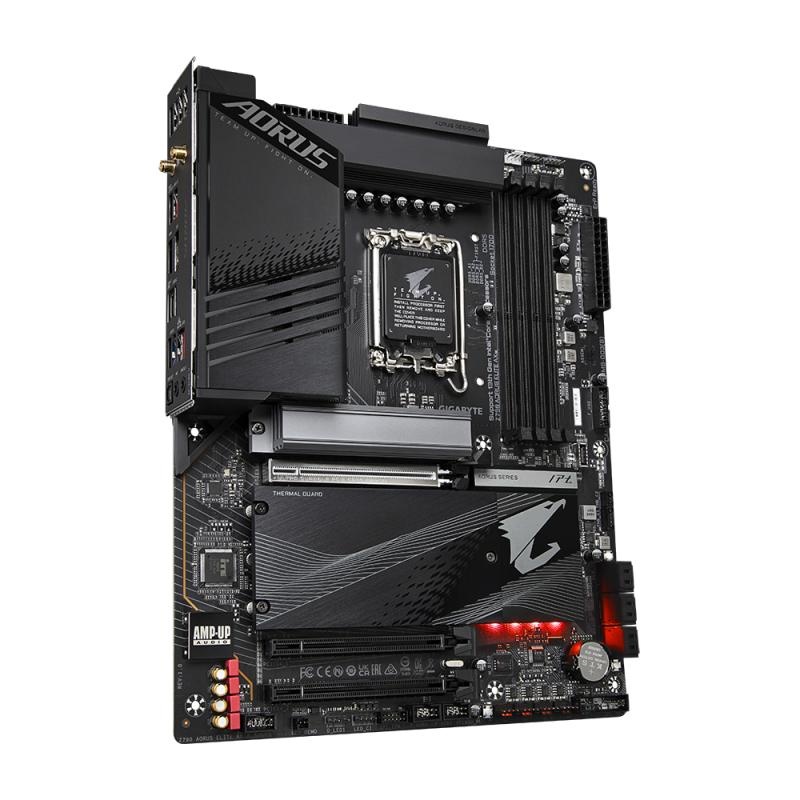

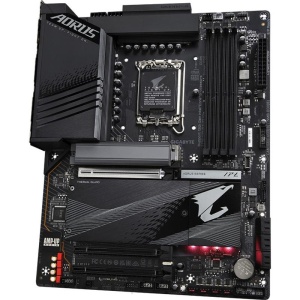

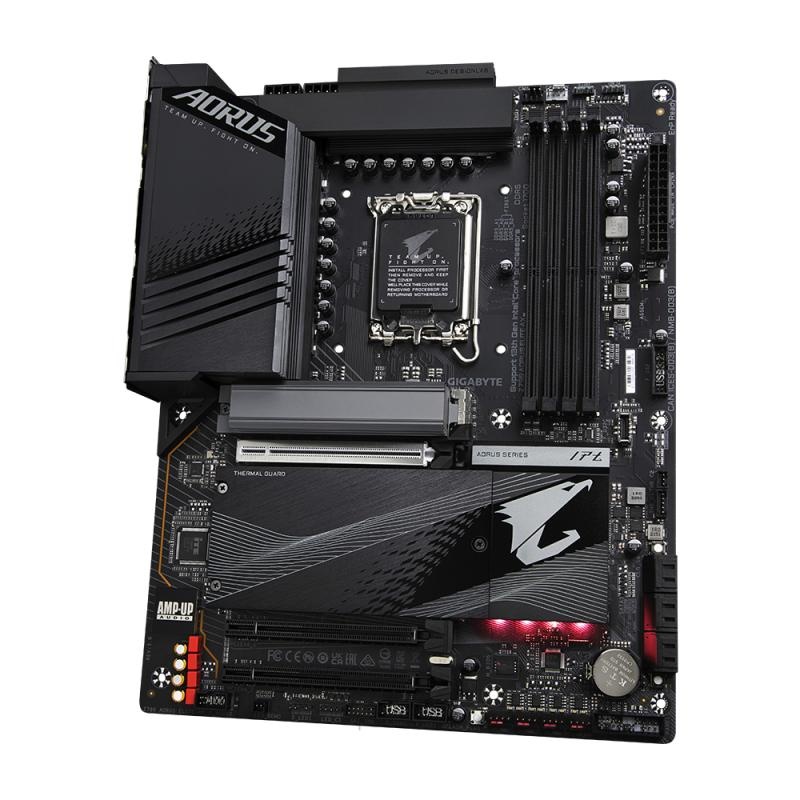

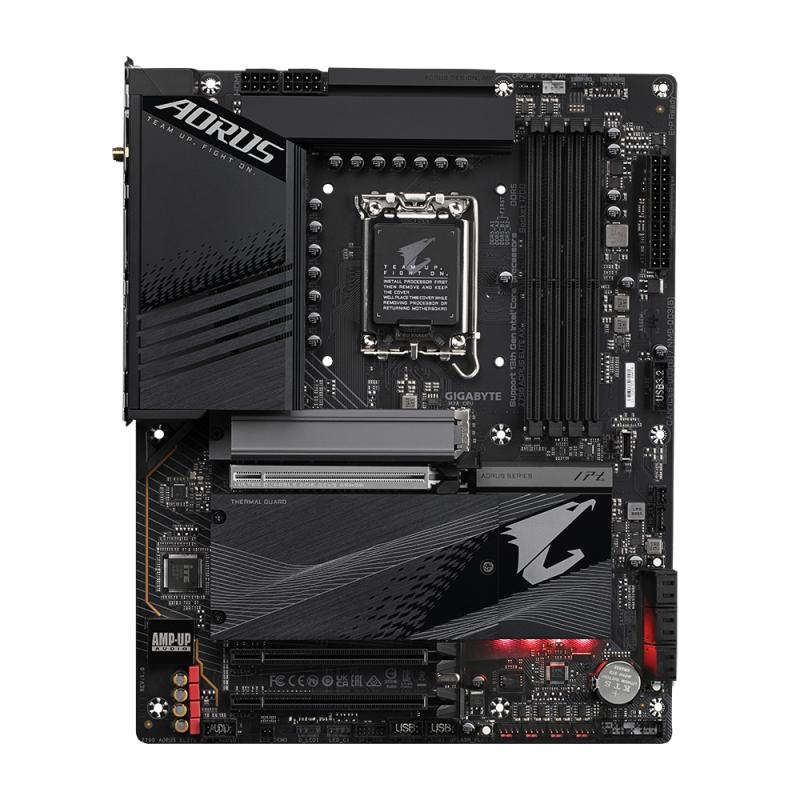

Placa de baza GIGABYTE Z790 AORUS ELITE AX, LGA 1700
1.854 12 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere

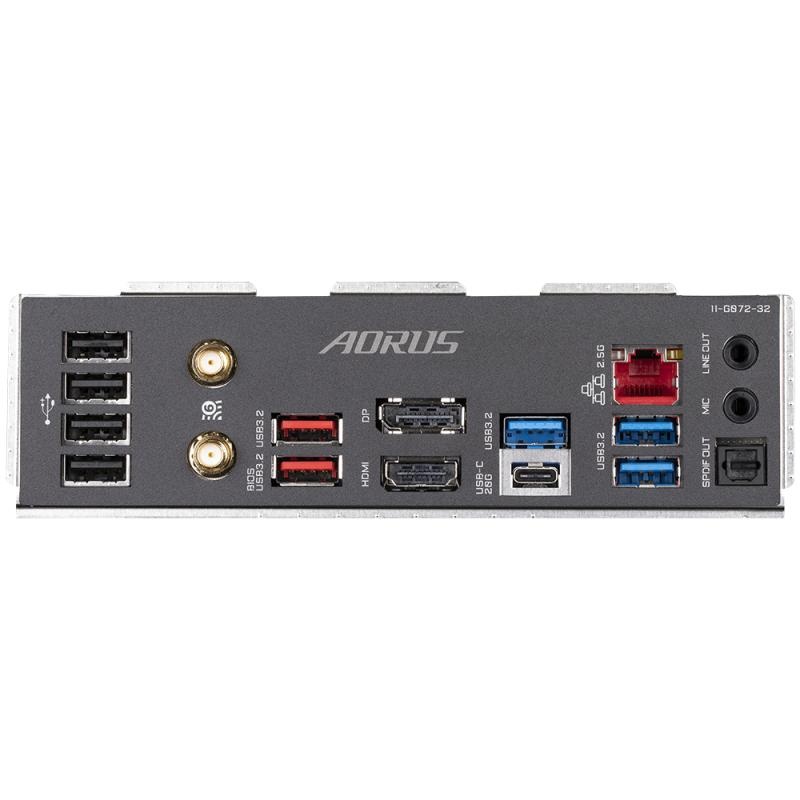

Placa de baza Gigabyte Z790 AORUS ELITE AX LGA 1700,Z790, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 7600MHz(OC), 4 x M.2 , 6 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 9x USB, Type-C
Detalii
SKU
Z790 AORUS ELITEAX
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Country of origin
China
Product colour
Black
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Processor manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Memory channels
Dual-channel
Wi-Fi
Yes
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
4
Maximum internal memory supported by processor
192 GB
Maximum internal memory
192 GB
On-board graphics card
No
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Motherboard chipset
Intel Z790
Motherboard form factor
ATX
Motherboard chipset family
Intel
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
HDCP
Yes
Maximum resolution
4096 x 2304 pixels
DirectX version
12.0
Thunderbolt headers
2
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 2.0 connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
ECC сompatibility
ECC & Non-ECC
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory clock speed (max)
7600 MHz
Ethernet interface type
2.5 Gigabit Ethernet
Batteries included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
DisplayPort version
1.2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
VGA (D-Sub) ports quantity
0
RAID levels
0, 1, 5, 10
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
Height
35 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Cables included
SATA
Number of M.2 (M) slots
4
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
S/PDIF out port
Yes
WiFi-AP antenna jack
2
USB connector type
USB Type-A, USB Type-C
Clear CMOS button
Yes
Headphone outputs
2
PCI Express x16 slots
3
Bundled software
Norton Internet Security
HDMI version
2.0
Number of SATA III connectors
6
Number of HDDs supported
6
Package weight
2.32 kg
Parallel processing technology support
Crossfire
Total number of SATA connectors
6
Supported memory clock speeds
7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Number of storage drives supported
10
