16%

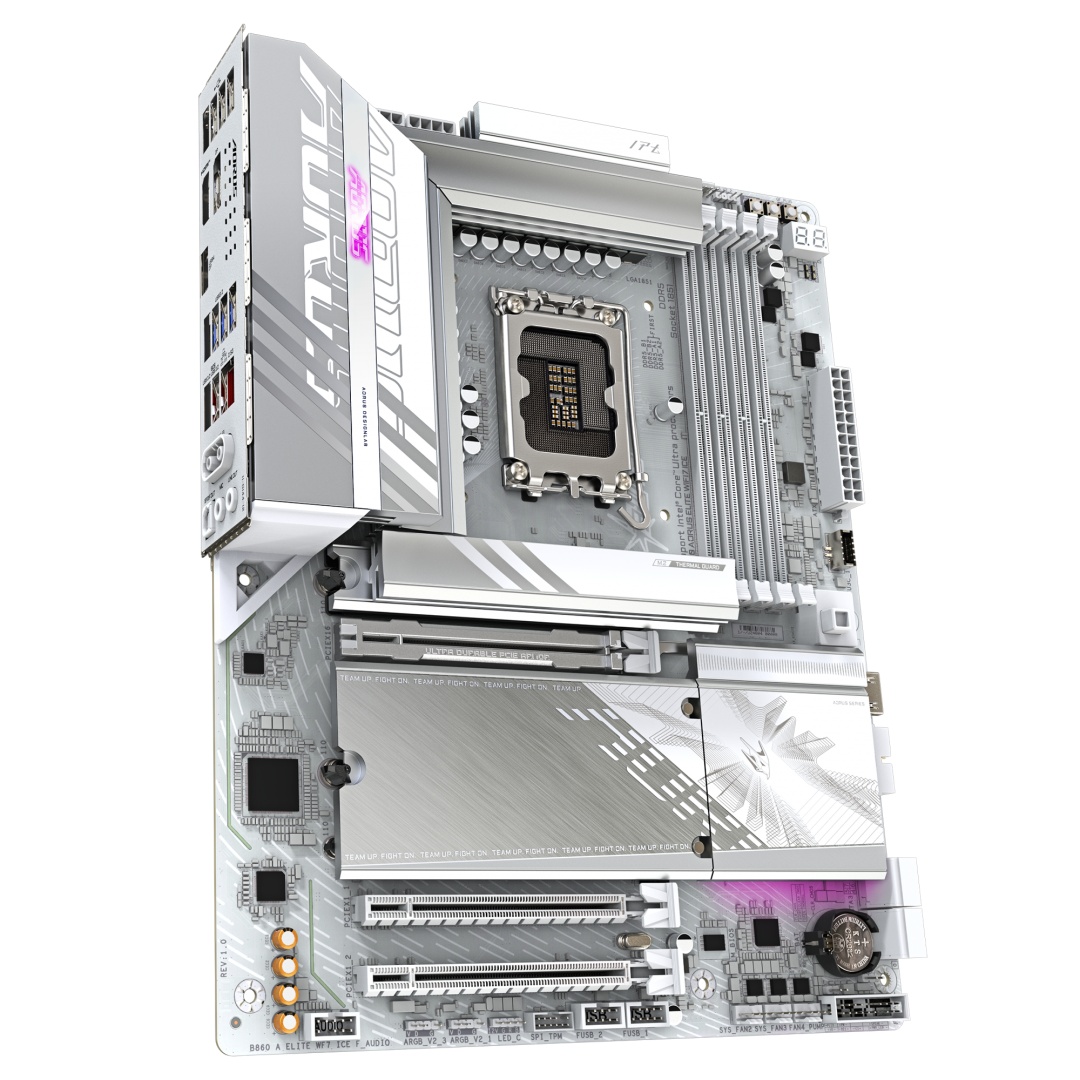

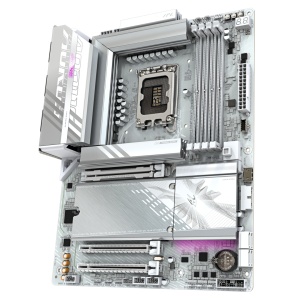

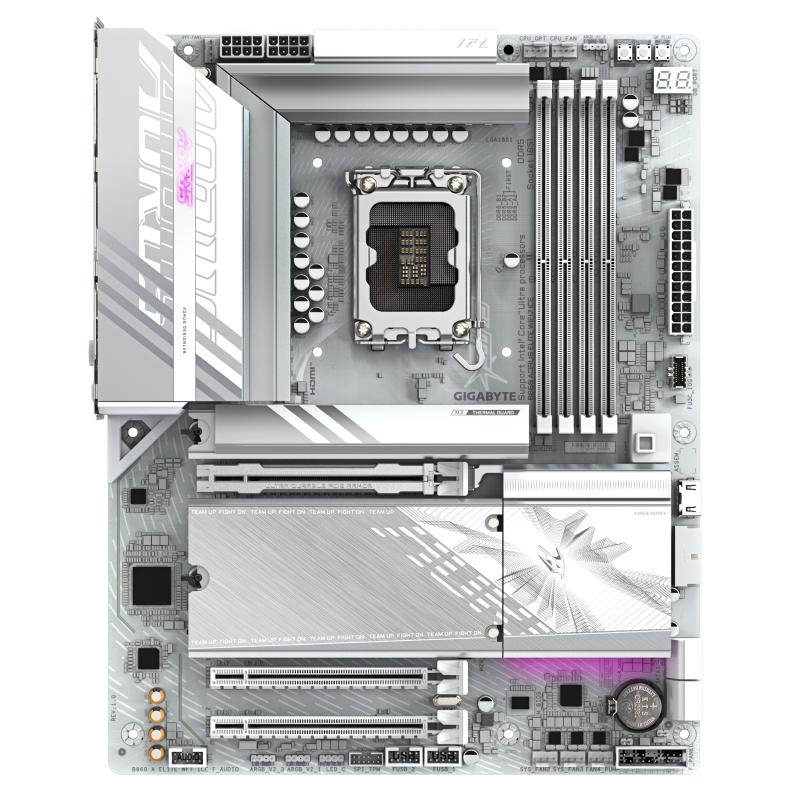

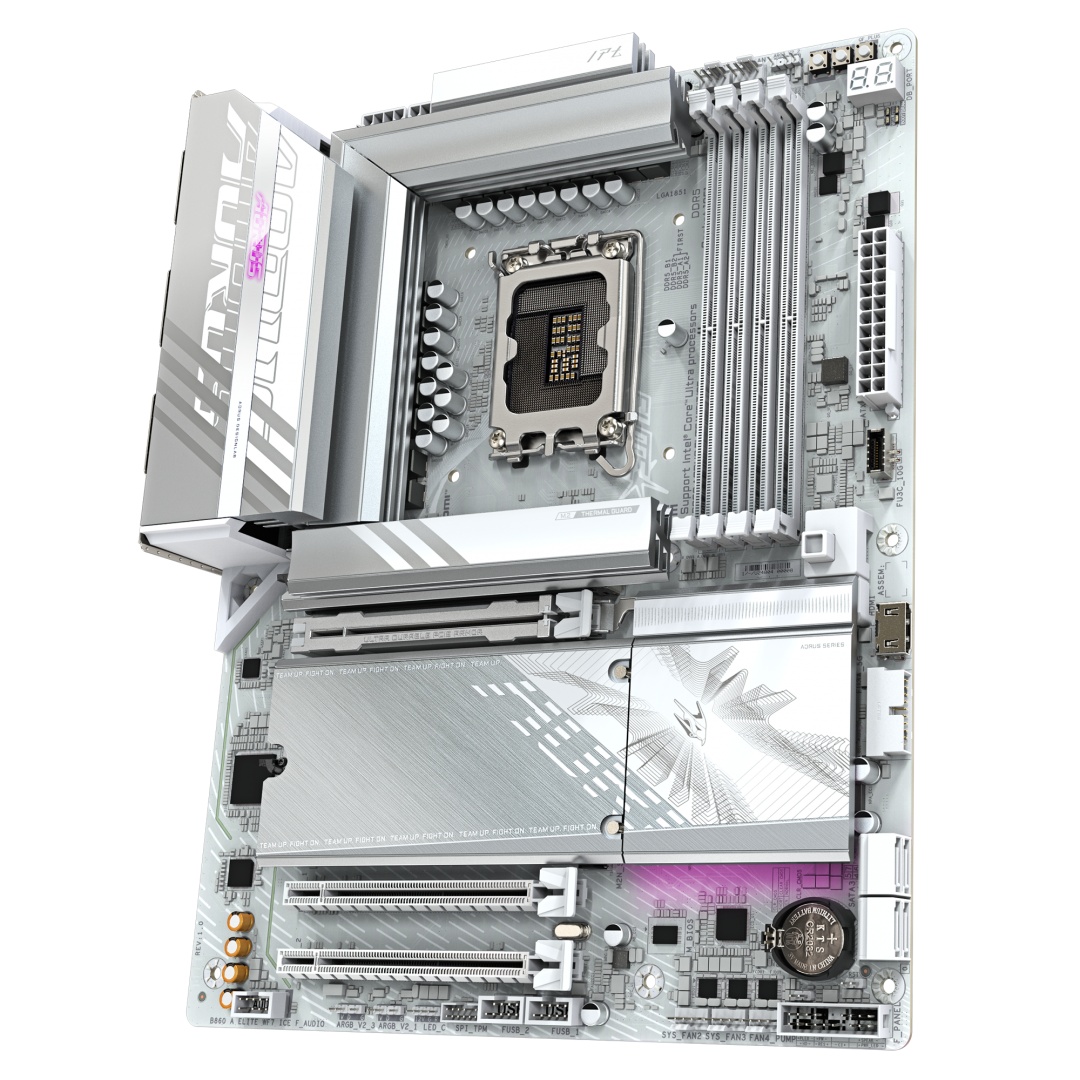

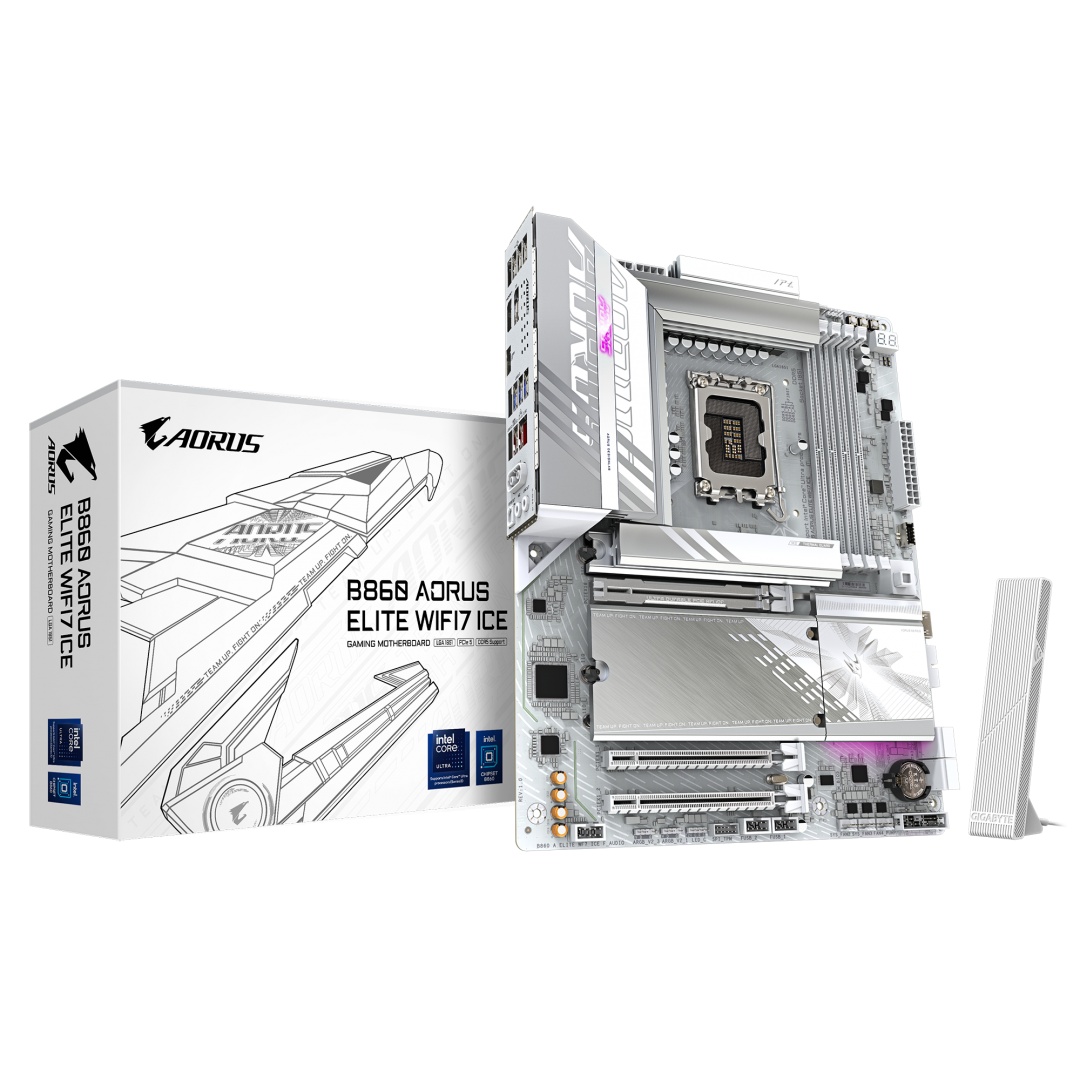

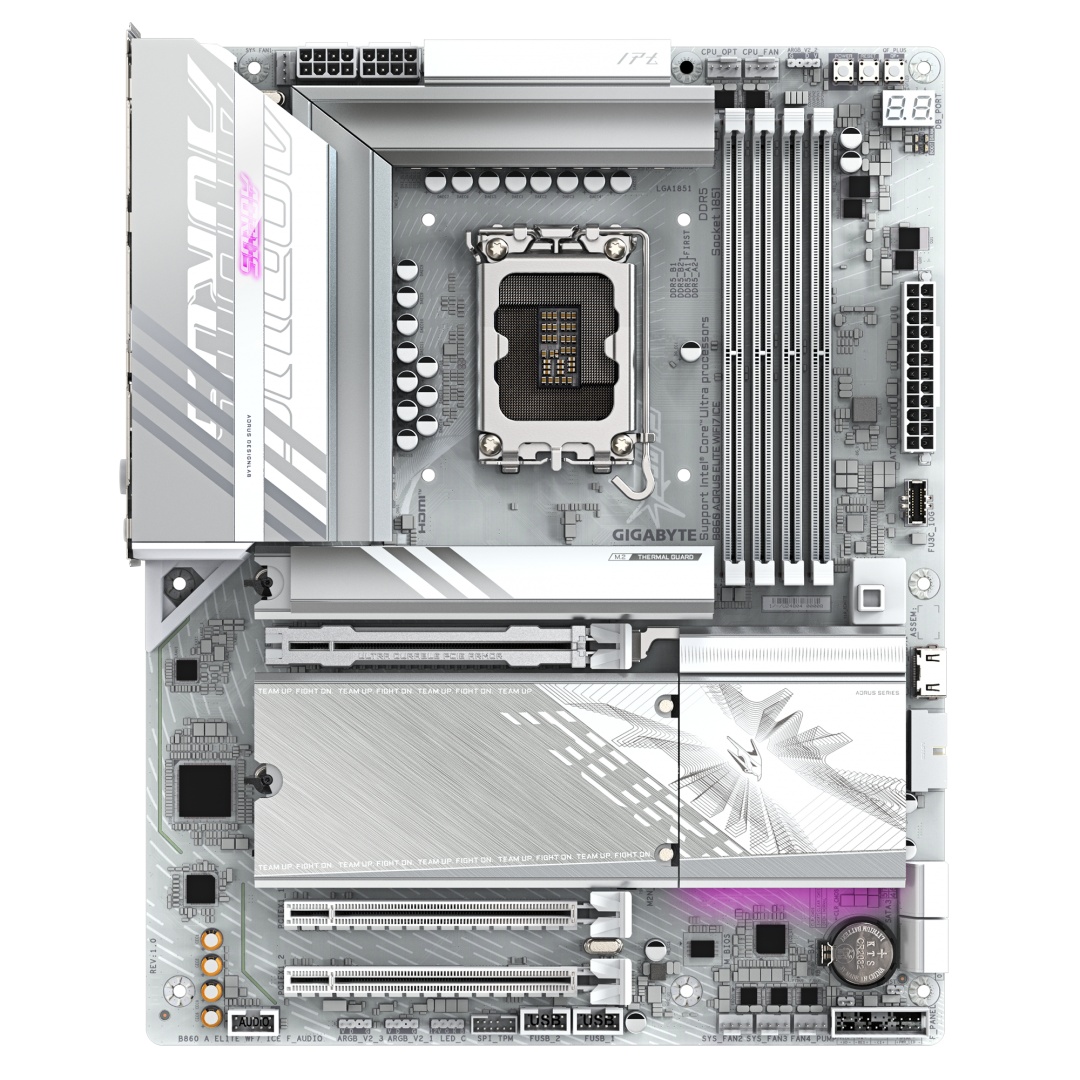

Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851
1.187 73 RON
(TVA inclus)
1.425 13 RON
Costurile de livrare nu sunt incluse
Descriere

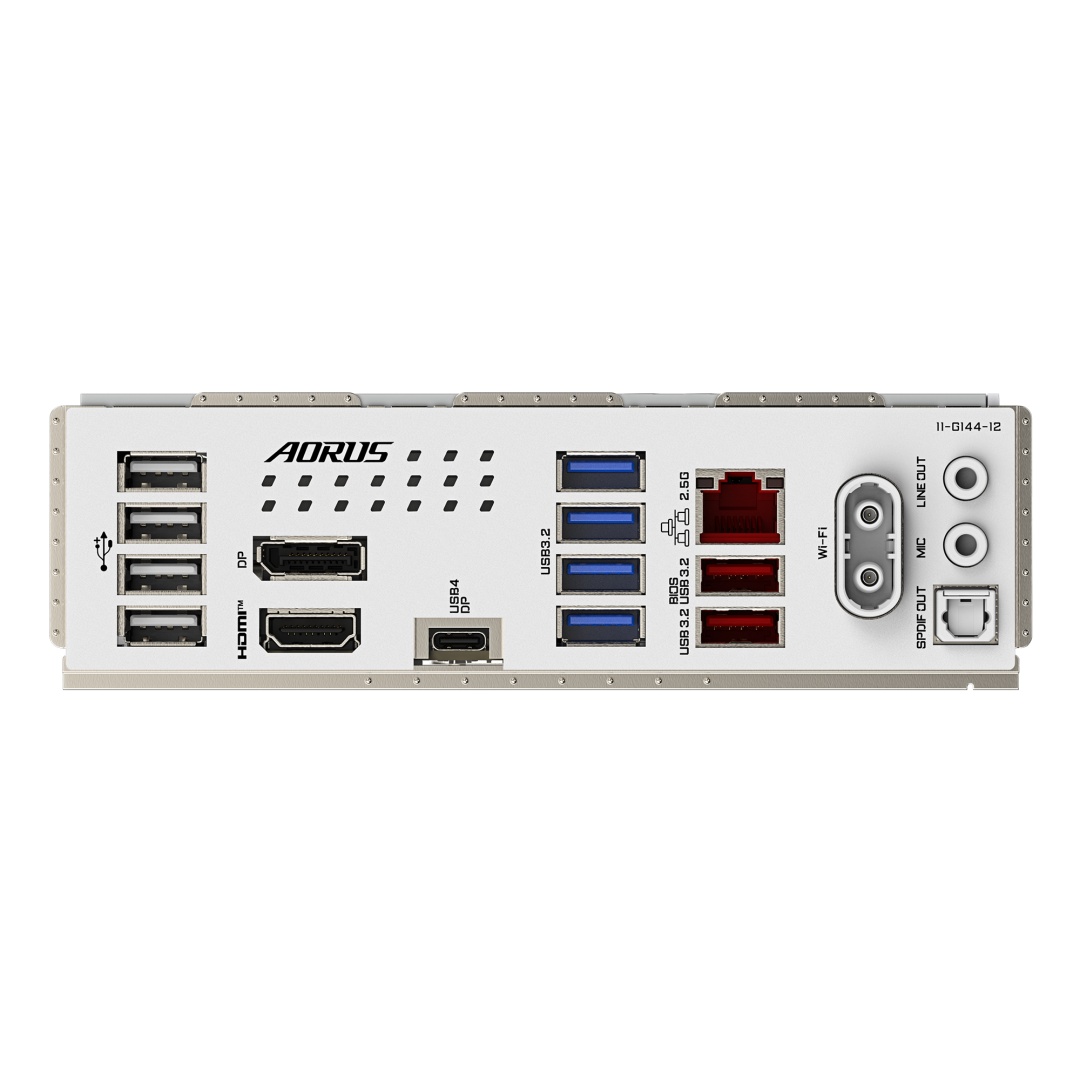

Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI 1x Front HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
B860 A ELITE WF7 ICE
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Product colour
White
Country of origin
China
Bluetooth
Yes
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
RAID support
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 5.x) slots
1
Bluetooth version
5.4
Line-in
Yes
DisplayPorts quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Headphone outputs
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Motherboard chipset family
Intel
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 2.0 connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
ECC сompatibility
ECC & Non-ECC
Maximum internal memory per slot
64 GB
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Number of HDDs supported
4
Number of storage drives supported
7
RAID levels
0, 1, 5, 10
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
Height
35 mm
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
1st M.2 highest PCI Express generation
5.0
Motherboard chipset
Intel B860
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

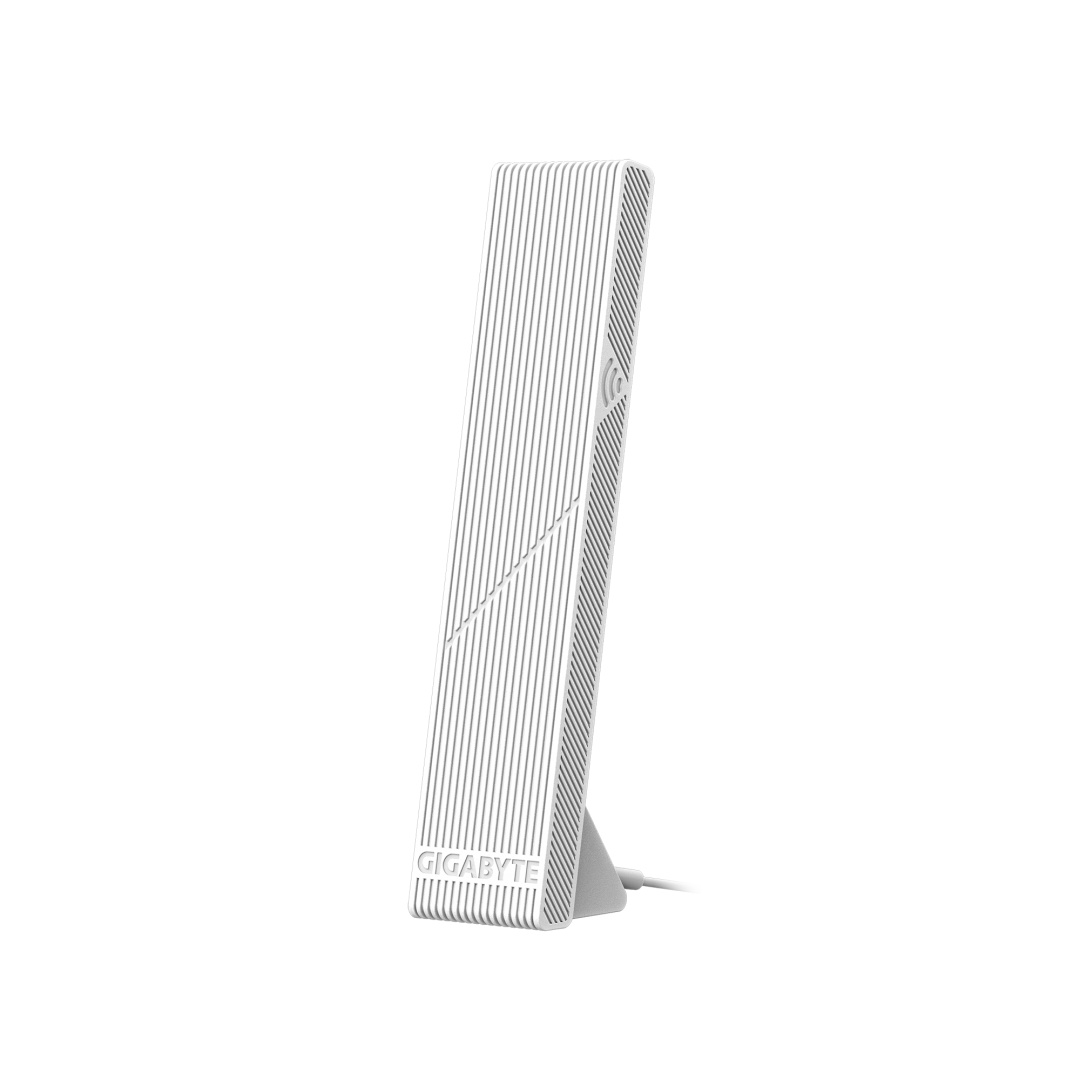

Antenna included
Yes
Maximum resolution
4096 x 2160 pixels
Number of RGB LED pin headers
4
DisplayPort version
2.1
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
1st M.2 largest key size
25110
S/PDIF out port
Yes
USB4 Gen 2x2 ports quantity
1
Windows operating systems supported
Windows 11 x64
2nd M.2 largest key size
22110
Supported memory clock speed (max)
9200 MHz
WiFi-AP antenna jack
2
PCI Express x16 (Gen 4.x) slots
2
WLAN controller model
Realtek RTL8922AE
Supported memory clock speeds
5600,6400,9200 MHz
3rd M.2 largest key size
22110
Weight
2.21 kg
Package weight
2.49 kg
Digital audio optical out
1
