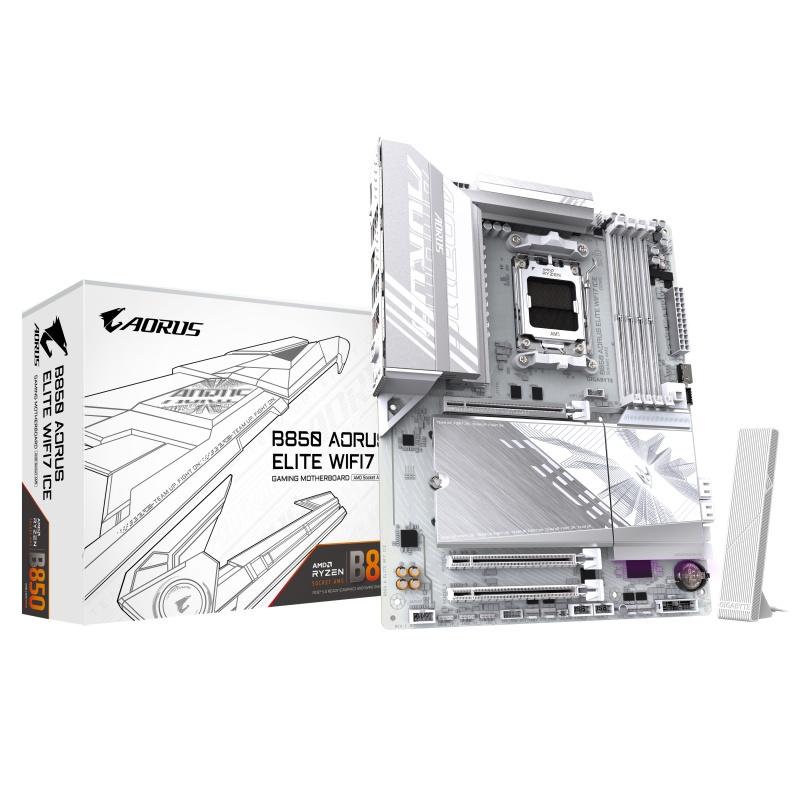

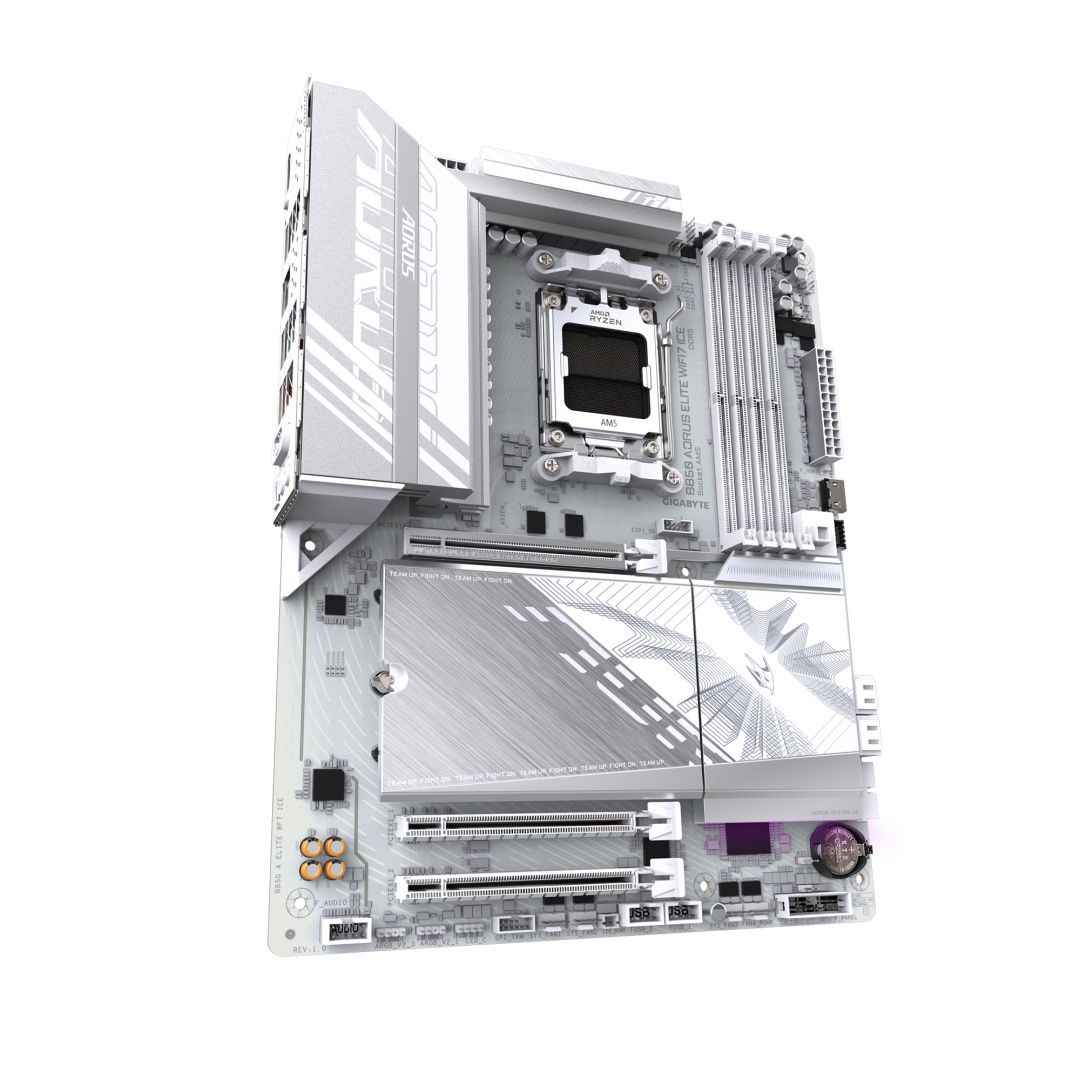

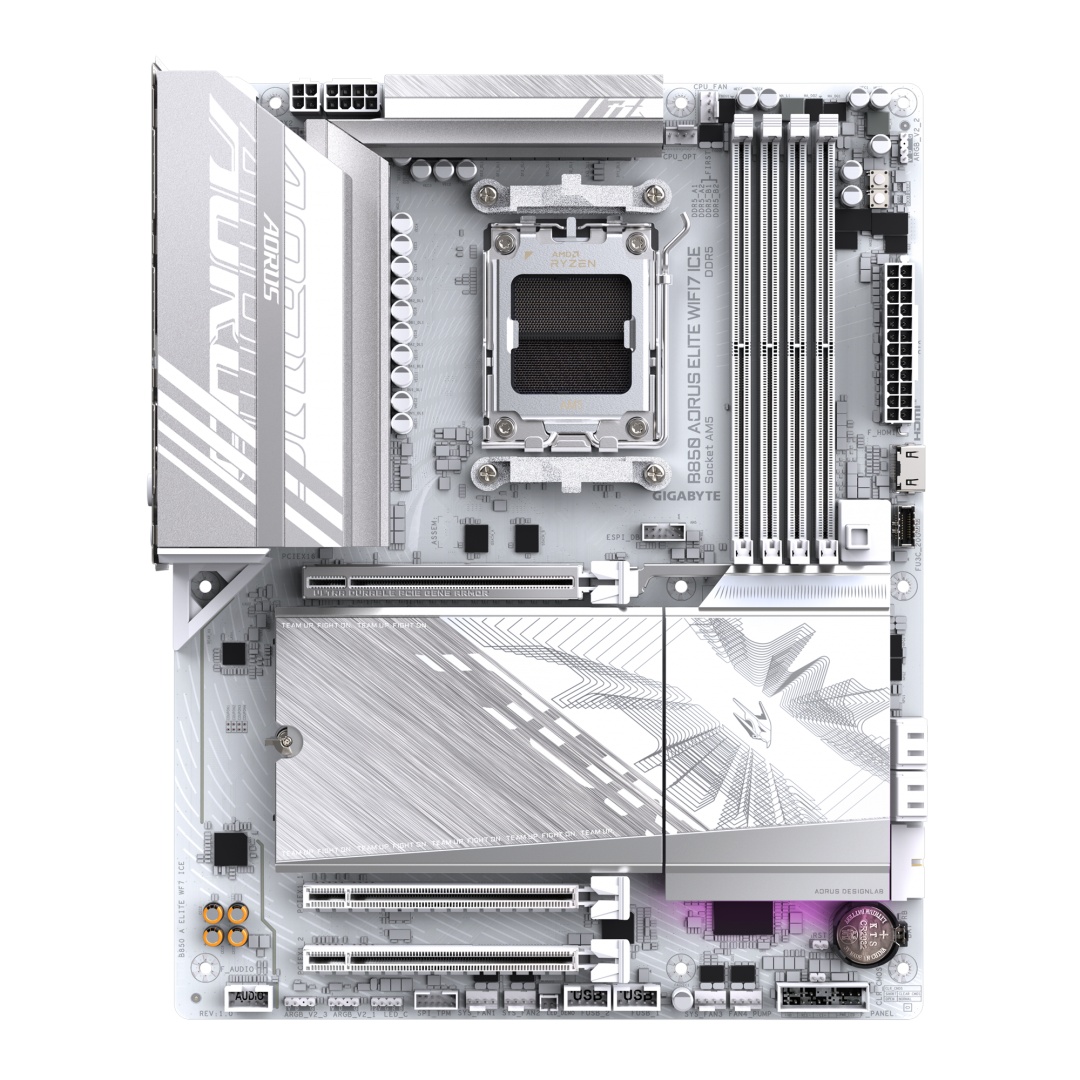

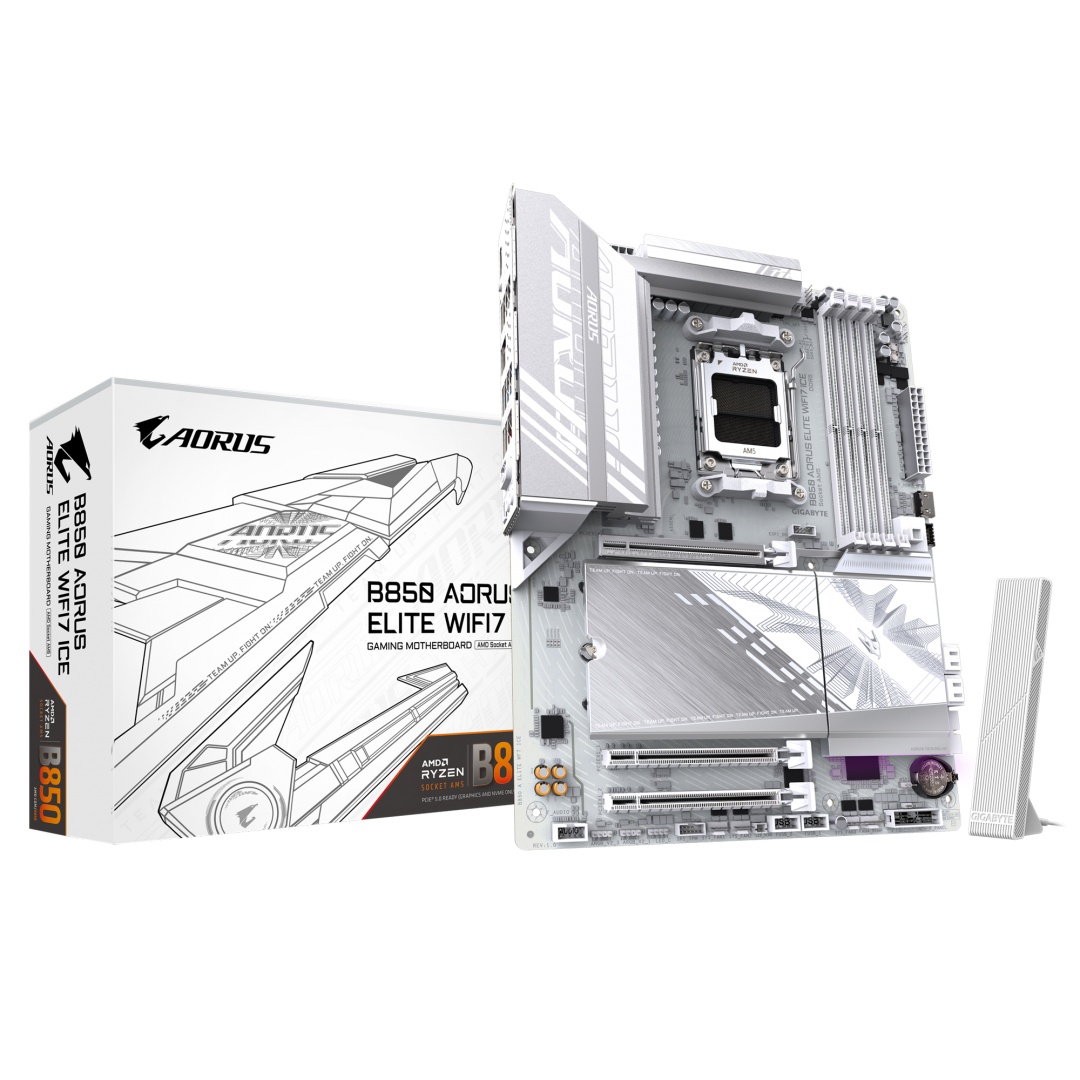

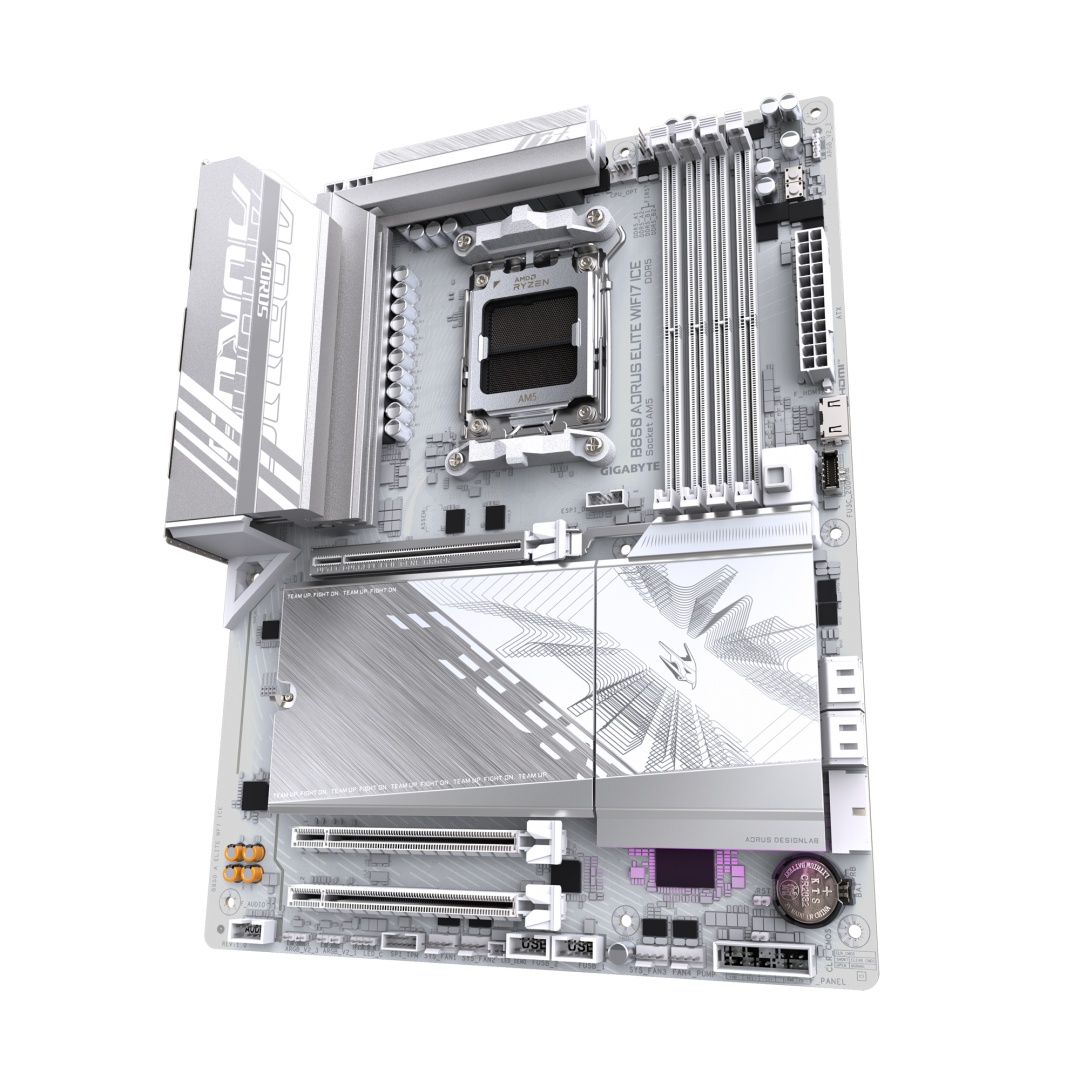

Placa de Baza GIGABYTE B850 AORUS ELITE WIFI7 ICE AM5
1.366 98 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere

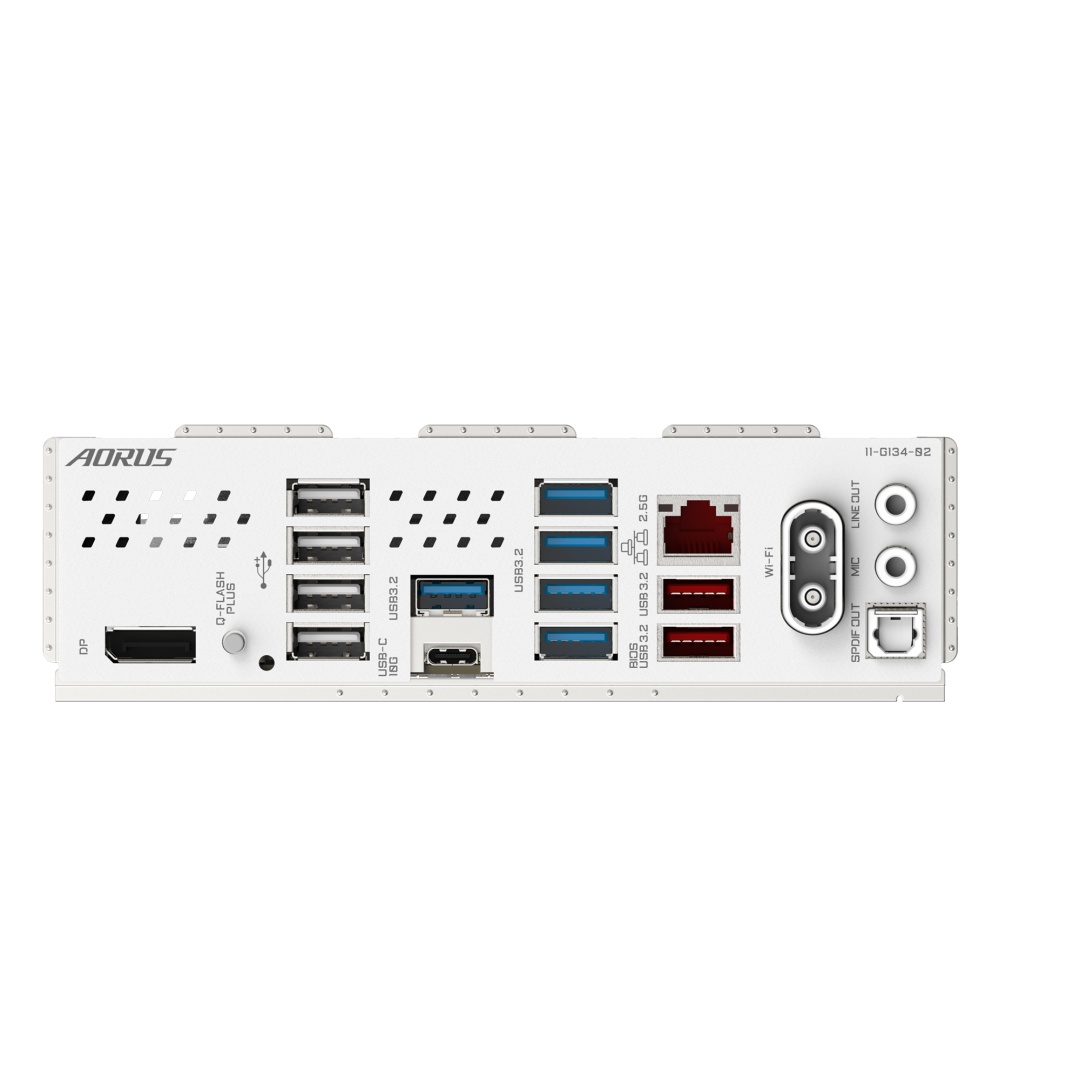

Placa de Baza GIGABYTE B850 AORUS ELITE WIFI7 ICE AM5, 4x DDR5, 1x DP 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
B850 A ELITE WF7 ICE
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Country of origin
China
Bluetooth
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Weight
2.16 kg
Wi-Fi
Yes
Processor manufacturer
AMD
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Bluetooth version
5.4
DisplayPorts quantity
1
USB 2.0 ports quantity
4
Headphone outputs
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 2.0 connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Warranty period
3 year(s)
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
Height
35 mm
Number of EPS power connectors (8-pin)
1
ECC сompatibility
Non-ECC
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
1st M.2 highest PCI Express generation
5.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Number of chassis fan connectors
3
Antenna included
Yes
Maximum resolution
4096 x 2160 pixels
Number of RGB LED pin headers
4
1st M.2 largest key size
25110
Serial port headers
1
Motherboard chipset family
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
2nd M.2 largest key size
22110
USB 3.2 Gen 2x2 connectors
1
WiFi-AP antenna jack
2
PCI Express x16 (Gen 4.x) slots
2
Motherboard chipset
AMD B850
RAID levels
0, 1, 10
Clear CMOS button
Yes
WLAN controller model
Realtek RTL8922AE
3rd M.2 largest key size
22110
Peripheral (Molex) power connectors (4-pin)
1
Supported memory clock speeds
4400,4800,5200,8200 MHz
Supported memory clock speed (max)
8200 MHz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Product colour
Brown, White
Package weight
2.46 kg
