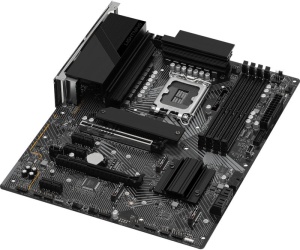

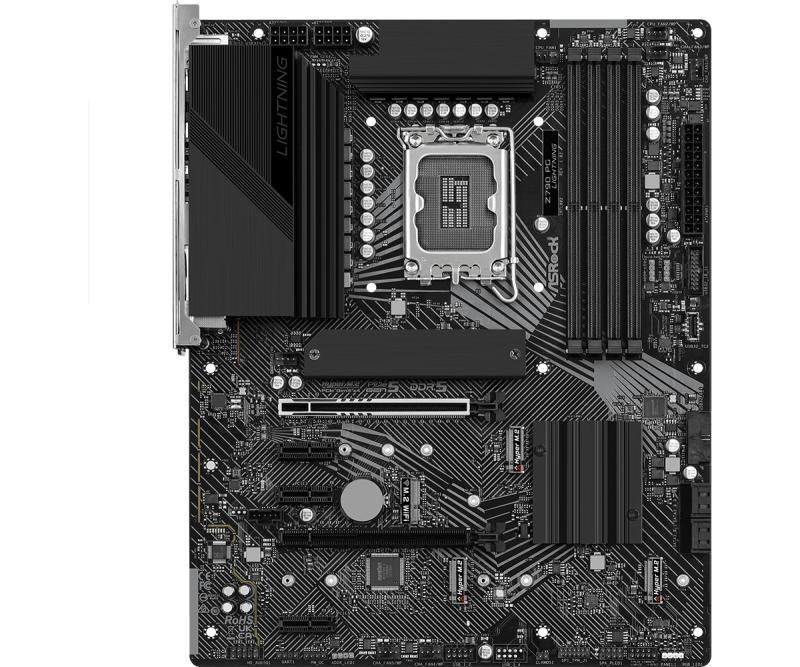

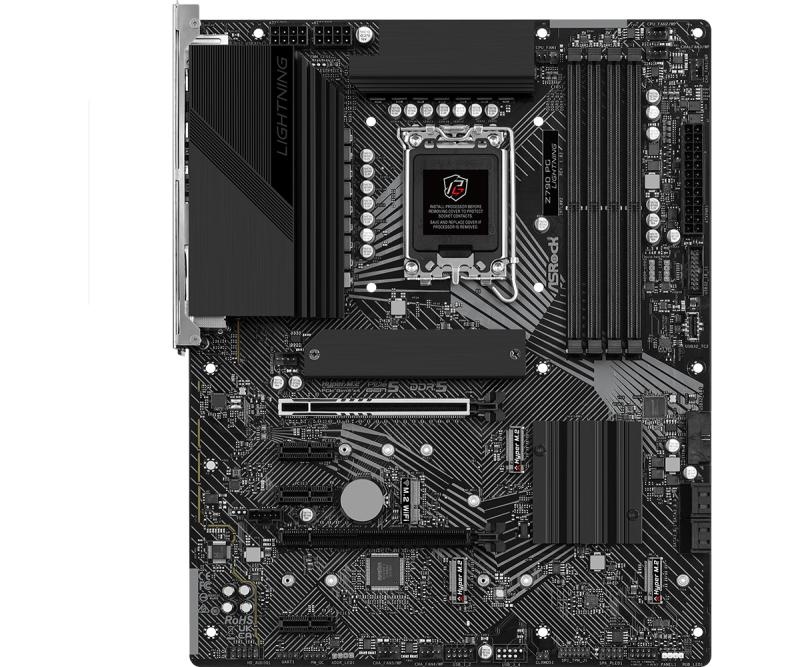

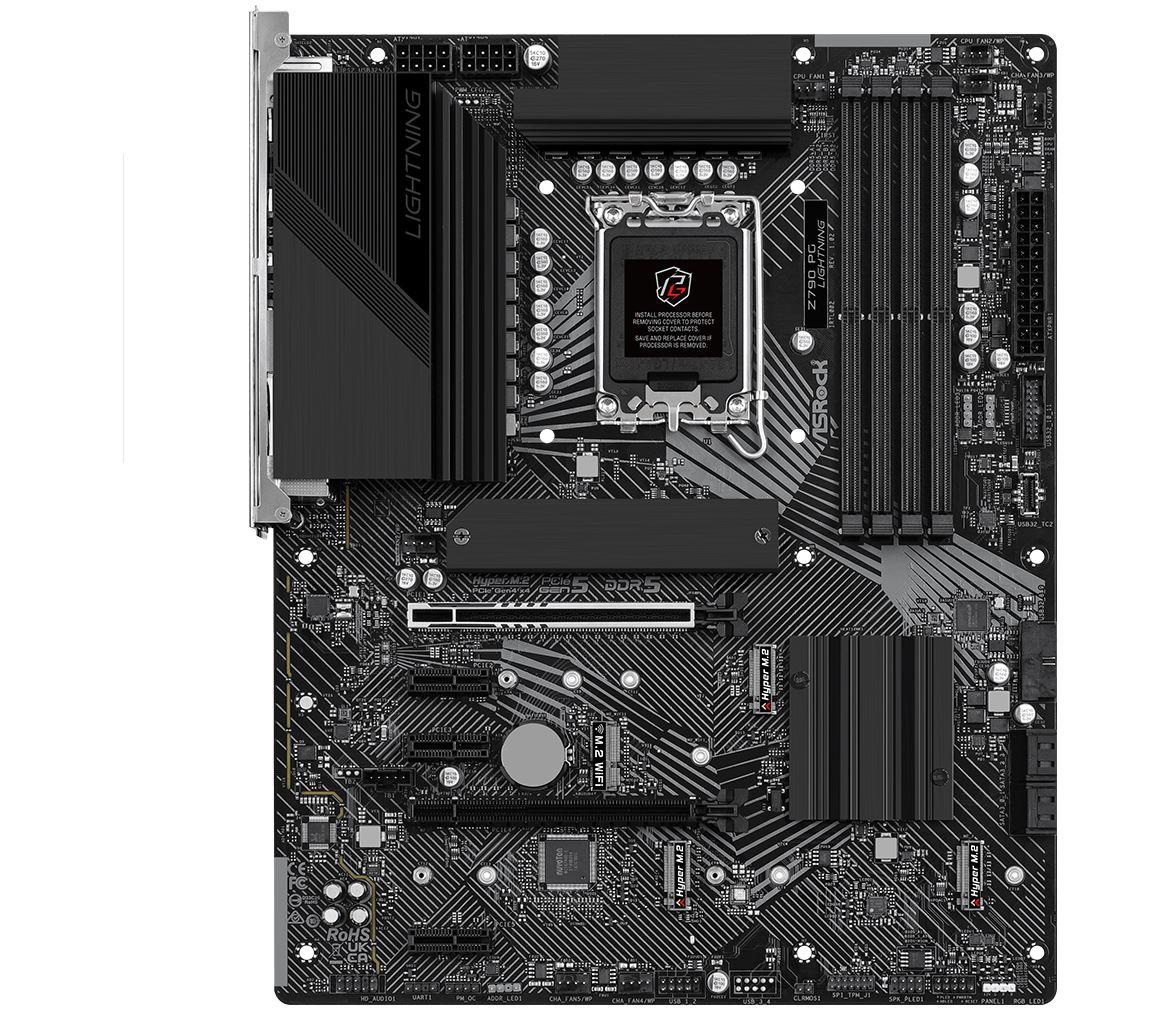

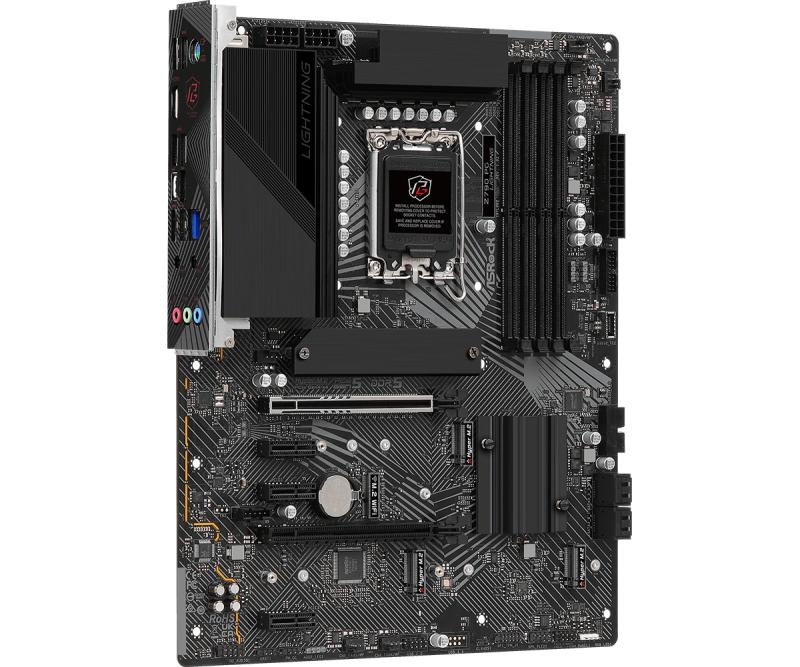

Placa de baza Asrock Z790 PG LIGHTNING LGA1700
919 47 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere

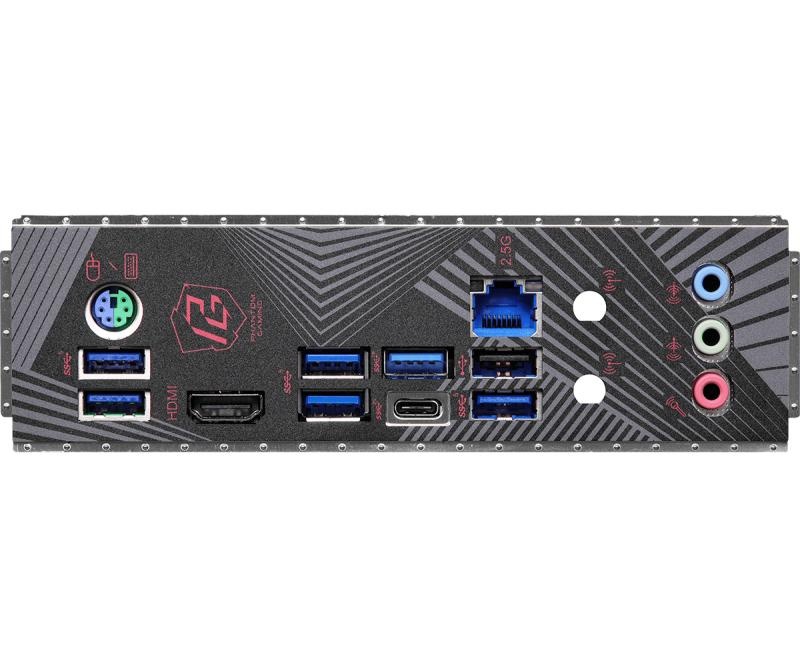

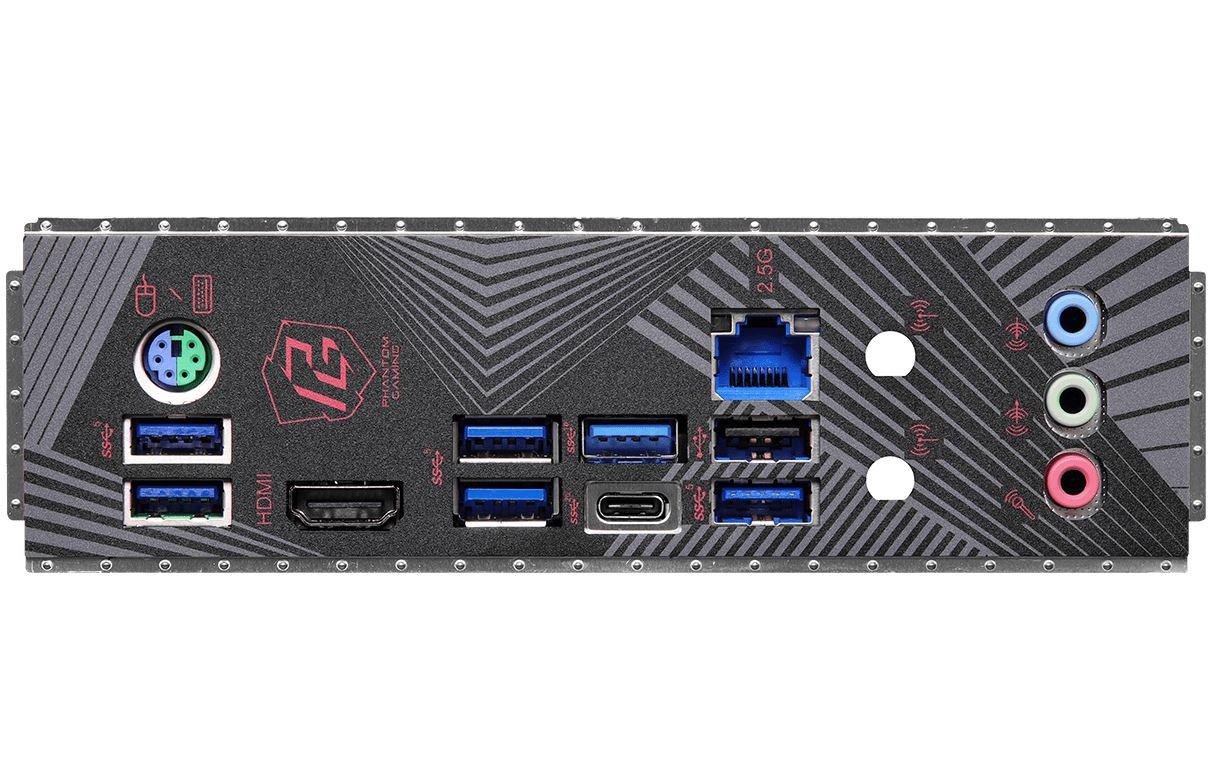

Placa de baza Asrock Z790 PG LIGHTNING LGA 1700 Supports 13th Gen & 12th Gen Intel® Core™ Processors 14+1+1 Phase Power Design, Dr.MOS for VCore+GT 4 x DDR5 DIMMs, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 9 USB 3.2 Gen1 Type-A (5 Rear, 4 Front), 3 USB 2.0 (1 Rear, 2 Front) Realtek 2.5G LAN
Detalii
SKU
Z790 PG LIGHTNING
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Memory channels
Dual-channel
USB 2.0 ports quantity
1
Maximum internal memory
128 GB
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi
No
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Headphone outputs
1
BIOS type
UEFI AMI
Motherboard chipset
Intel Z790
Motherboard form factor
ATX
Motherboard chipset family
Intel
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
LGA 1700
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
1
RAID levels
0, 1, 5, 10
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
USB 2.0 connectors
1
ECC сompatibility
Non-ECC
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Thunderbolt headers
1
LAN controller
Dragon RTL8125BG
Maximum number of SMP processors
1
BIOS memory size
128 Mbit
Number of M.2 (M) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
PCI Express x1 (Gen 3.x) slots
3
Compatible processor series
Intel Core™ i5, Intel Core™ i7, Intel Core™ i9
