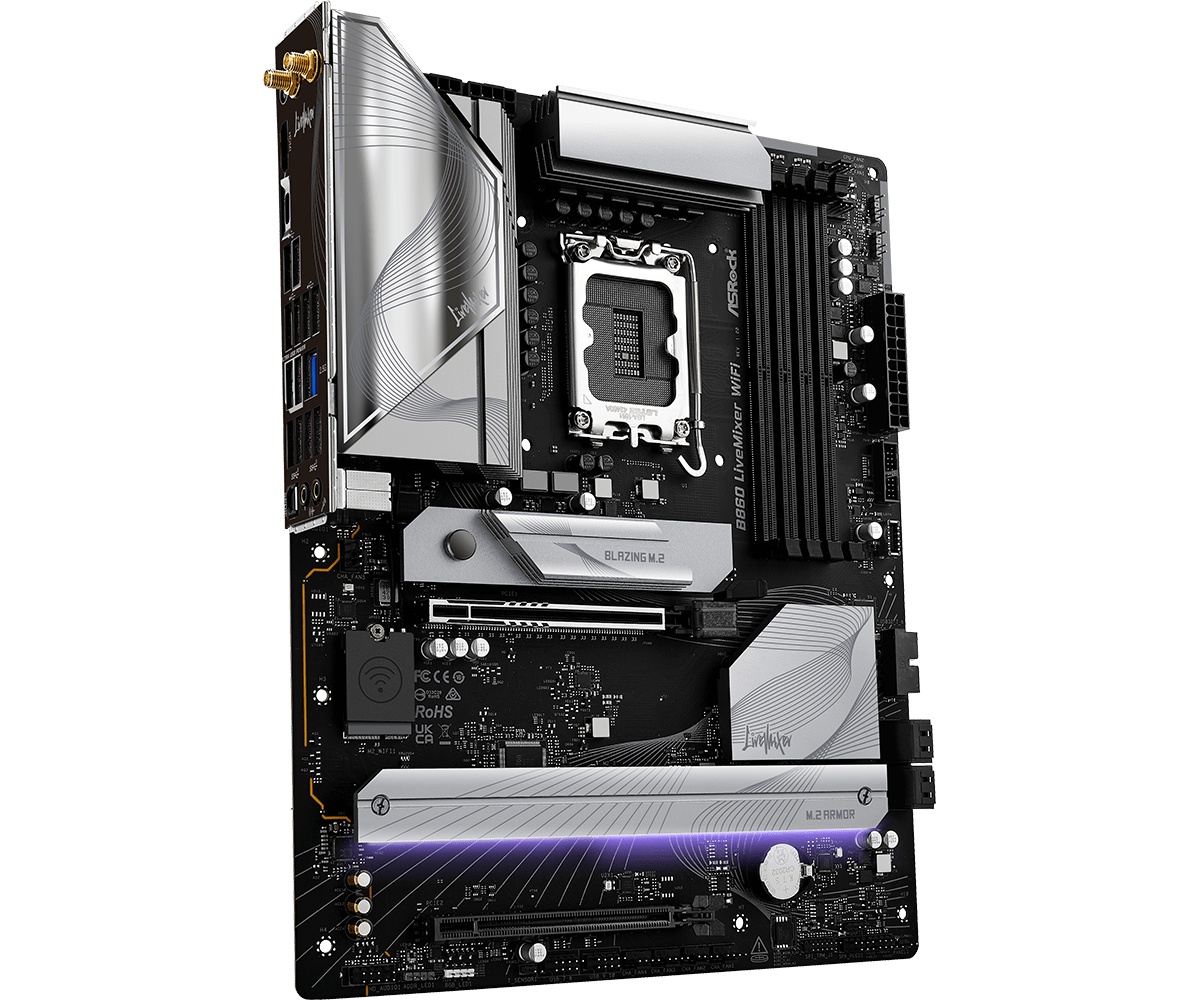

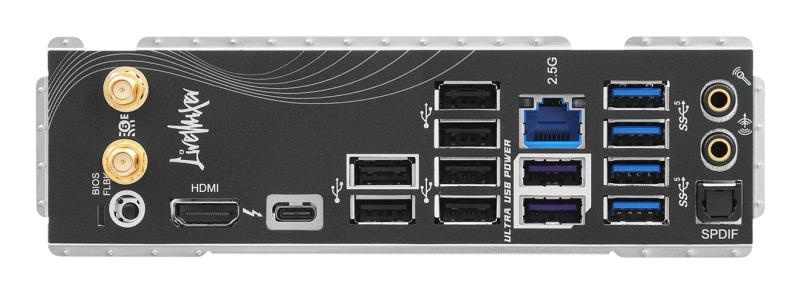

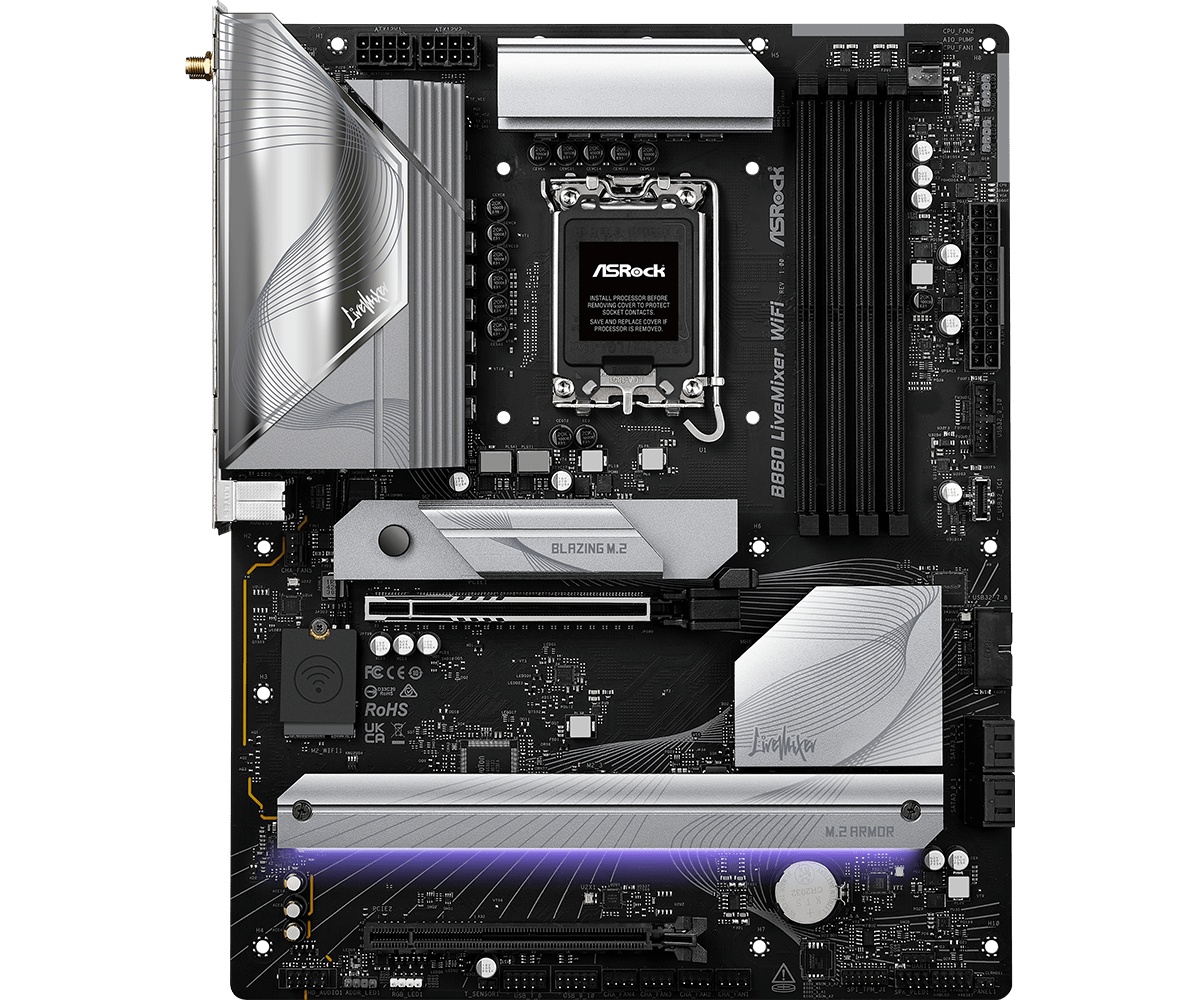

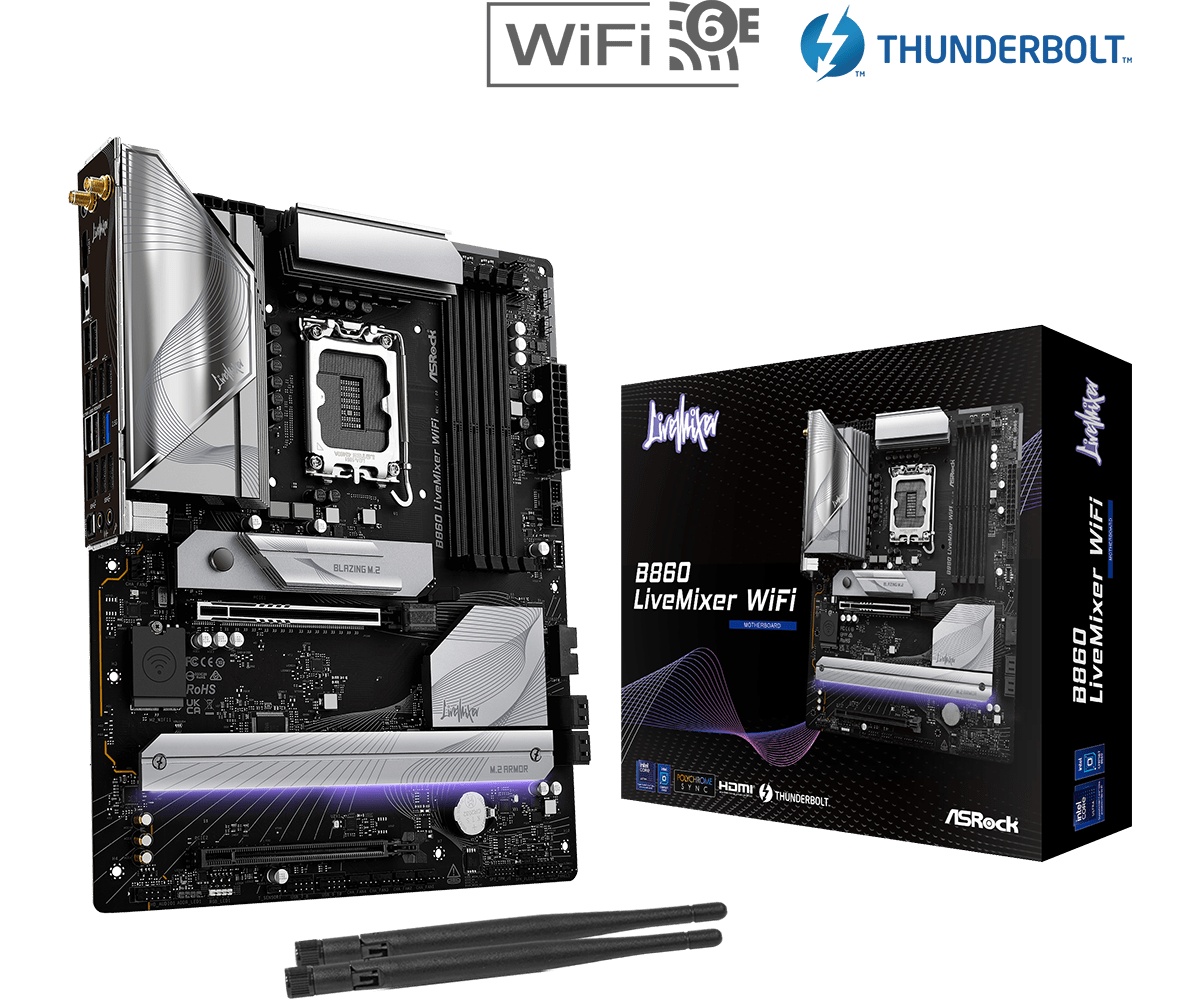

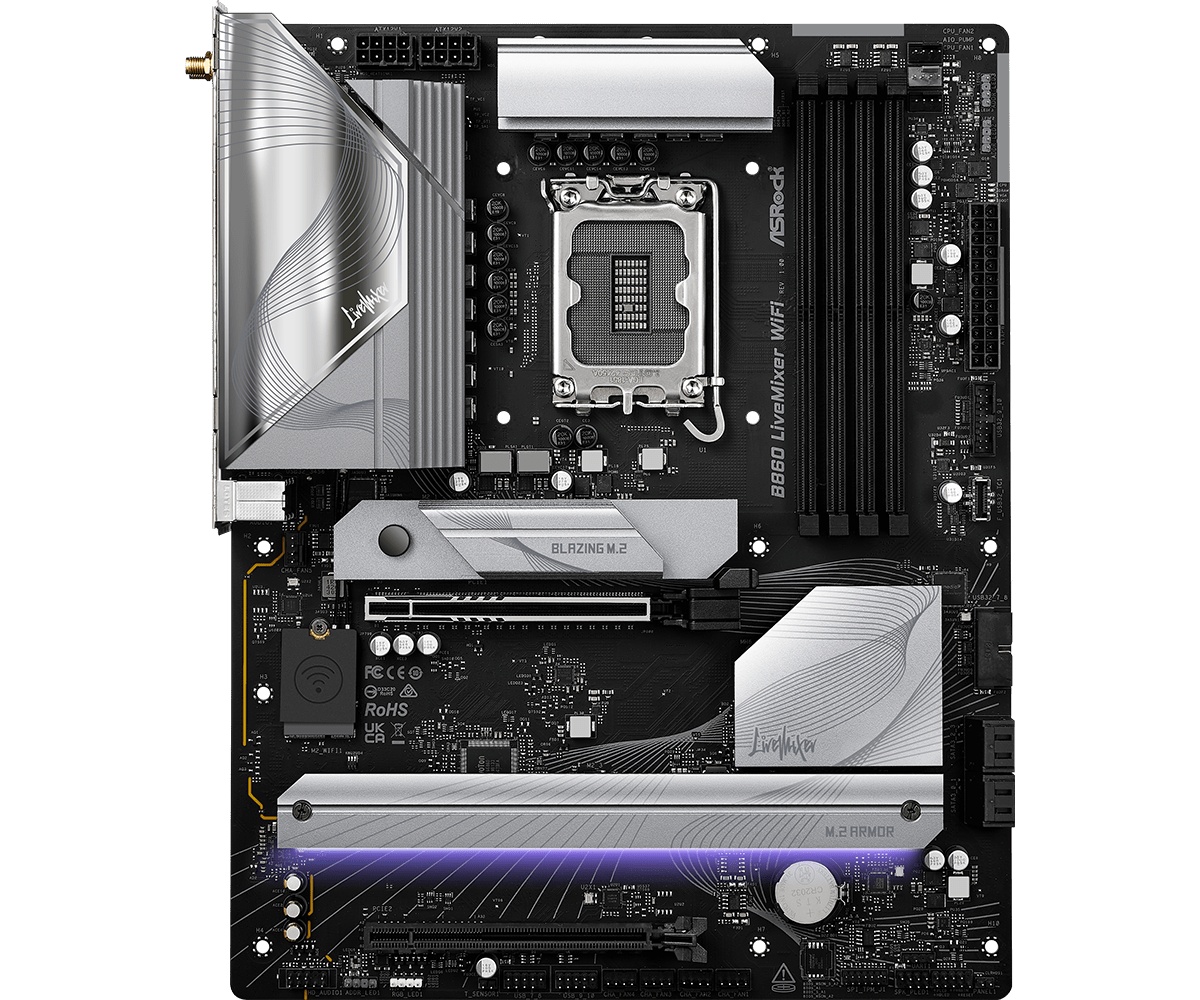

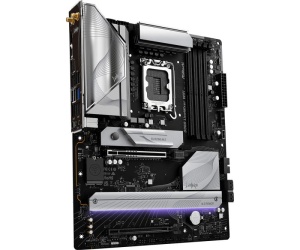

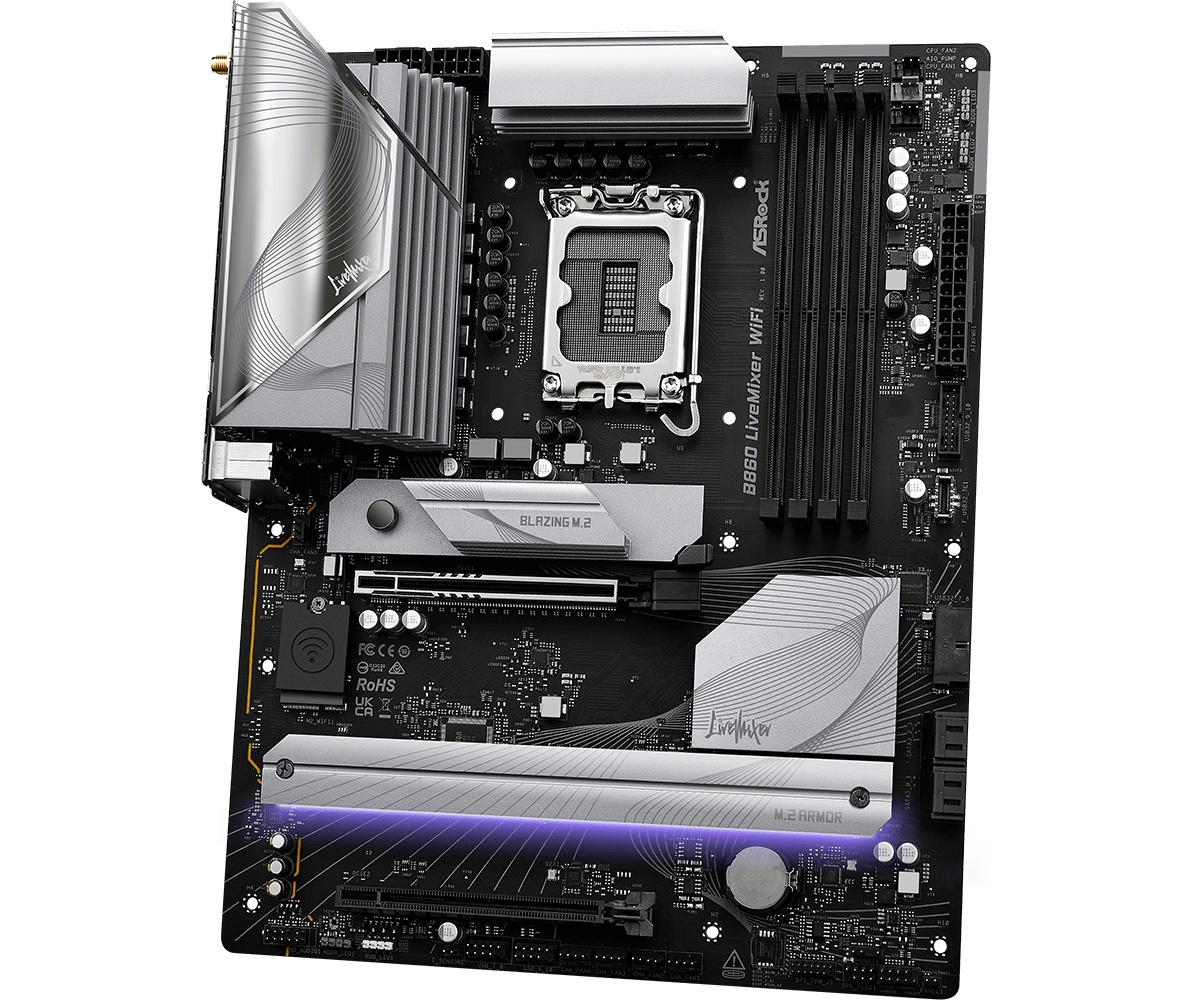

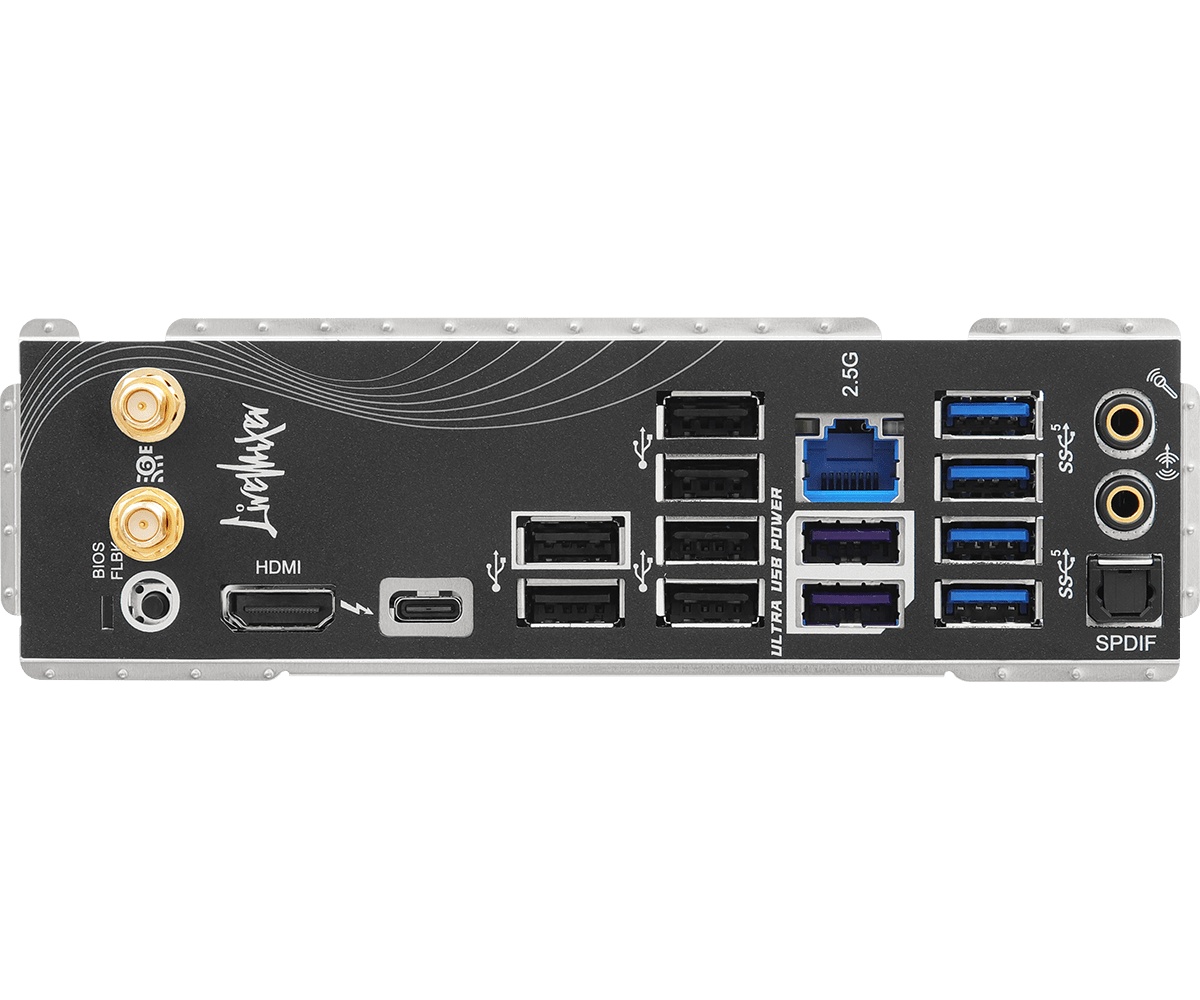

Placa de Baza ASROCK B860 LIVEMIXER WIFI LGA1851
1.134 32 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza ASROCK B860 LIVEMIXER WIFI LGA1851, 4x DDR5, 1x HDMI 1x Intel Thunderbolt, 2x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
B860 LIVEMIXER WIFI
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Product colour
Black
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Wi-Fi
Yes
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Headphone outputs
1
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
3
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
3rd M.2 largest key size
2280
Motherboard form factor
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
HDCP
Yes
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Number of storage drives supported
7
RAID levels
0, 1, 5, 10
Supported storage drive types
HDD & SSD
Width
305 mm
Depth
244 mm
1st M.2 largest key size
2280
ECC сompatibility
Non-ECC
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
1st M.2 highest PCI Express generation
5.0
Motherboard chipset
Intel B860
12V power connector
Yes
Cables included
SATA
Antenna included
Yes
S/PDIF out port
Yes
Windows operating systems supported
Windows 11 x64
Number of water pump connectors
1
Audio Chip
Realtek ALC1220
Certification
FCC, CE, ErP/EuP
Maximum resolution
7680 x 4320 pixels
Number of RGB LED pin headers
1
Number of chassis fan connectors
5
LAN controller
Dragon RTL8125BG
WiFi-AP antenna jack
2
USB connector type
USB Type-A, USB Type-C
Thunderbolt ports quantity
1
Supported storage drive interfaces
PCI Express 4.0, PCI Express 5.0, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
USB 2.0 ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
