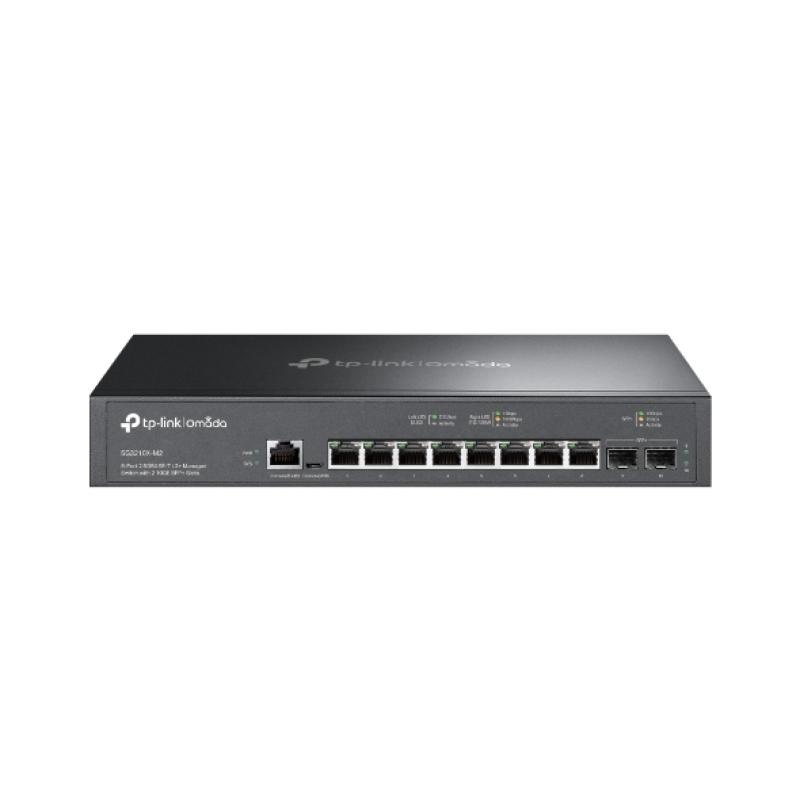

Switch TP-Link SG3210X-M2, 8 x porturi RJ 45, 2 x SFP+, viteza LAN 100/1000/2500 MBps, Layer L2+, capacitate 80 Gbps, dimensiuni 294 × 180 × 44 mm
1.284 42 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Switch TP-Link SG3210X-M2, 8 x porturi RJ 45, 2 x SFP+, viteza LAN 100/1000/2500 MBps, Layer L2+, capacitate 80 Gbps, dimensiuni 294 × 180 × 44 mm
Detalii
SKU
SG3210X-M2
Categorii
Brand
LAN-Port-Type
FastEthernet
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Password protection
Yes
Quick start guide
Yes
Package type
Box
Package height
80 mm
Number of fans
2 fan(s)
Height
44 mm
LED indicators
Yes
Harmonized System (HS) code
85176990
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Package depth
250 mm
Operating temperature (T-T)
0 - 50 C
Jumbo frames support
Yes
Jumbo frames
9000
Rack mounting
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
ARP inspection
Yes
Web-based management
Yes
Switch type
Managed
Multicast support
Yes
IP routing
Yes
10G support
Yes
Port mirroring
Yes
Storage relative humidity (H-H)
5 - 90%
Power source
AC
SSH/SSL support
Yes
Static port security
Yes
IGMP snooping
Yes
MAC address filtering
Yes
Access Control List (ACL)
Yes
Static route
Yes
Rate limiting
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Number of VLANs
4000
Broadcast storm control
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
Form factor
1U
Flow control support
Yes
Power supply included
Yes
Loop protection
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
8
SFP+ module slots quantity
2
SFP module slots quantity
2
Depth
180 mm
Fanless
Yes
Certification
CE, FCC, ROHS
GARP VLAN Registration Protocol (GVRP)
Yes
Head-of-line (HOL) blocking
Yes
BPDU filtering/protection
Yes
Traffic classification
Yes
Power connector
AC-in jack
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
8
MAC address table
16000 entries
Packet buffer memory
12 MB
Switch layer
L2+
Console port
RJ-45/micro-USB
IP-MAC-Port binding
Yes
Authentication
MAC-based authentication, Port-based authentication
Switching capacity
80 Gbit/s
Forwarding rate
59.52 Mpps
Number of static routes
48
Number of IP interfaces
16
Ethernet LAN data rates
100,1000,2500 Mbit/s
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast Listener Discovery (MLD) snooping
Y
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Heat dissipation
51.18 BTU/h
Package weight
2.84 kg
Package width
528 mm
Power consumption (typical)
15 W
Management protocols
SNMPv1/v2c/v3, SNTP
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Installed SFP modules quantity
0
Width
294 mm
