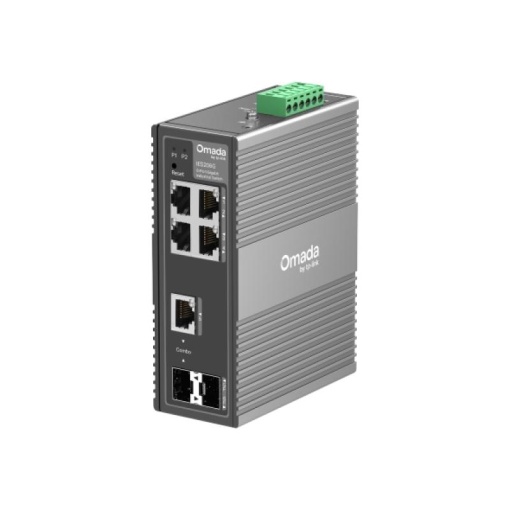

Switch Industrial Easy Managed, 6 porturi:4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+), 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot, capacitate switch 12 Gbps
971 63 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Switch Industrial Easy Managed, 6 porturi:4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+), 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot, capacitate switch 12 Gbps
Detalii
SKU
IES206GPP
Categorii
Brand
Rackable
No
LAN-Port-Type
FastEthernet
Redundant-PSU
No
LAN-Ports
5
Product colour
Black
Ethernet LAN data rates
10,100,1000 Mbit/s
Quick start guide
Yes
Storage temperature (T-T)
-40 - 85 C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Width
155 mm
Wall mountable
Yes
Jumbo frames support
Yes
Rack mounting
Yes
Switch type
Managed
Multicast support
Yes
Port mirroring
Yes
Redundant power supply (RPS) support
Yes
IGMP snooping
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Link aggregation
Yes
Power over Ethernet (PoE)
Yes
Flow control support
Yes
Certification
FCC, CE, RoHS
Store-and-forward
Yes
Stackable
No
10G support
No
MAC address table
8000 entries
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) power per port
30 W
DHCP features
DHCP client
Fanless
Yes
Combo SFP ports quantity
1
SFP module slots quantity
1
SFP+ module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
4
Power source
DC/PoE
Height
60 mm
Total Power over Ethernet (PoE) budget
120 W
Switching capacity
12 Gbit/s
Depth
120 mm
Power over Ethernet 4PPoE (PoE++) ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
3
Jumbo frames
15000
Forwarding rate
8.93 Mpps
DIN rail mounting
Yes
Operating temperature (T-T)
-40 - 75 C
DC input voltage
12 - 57 V
Power over Ethernet (PoE) type supported
PoE+, PoE++ (4PPoE)
