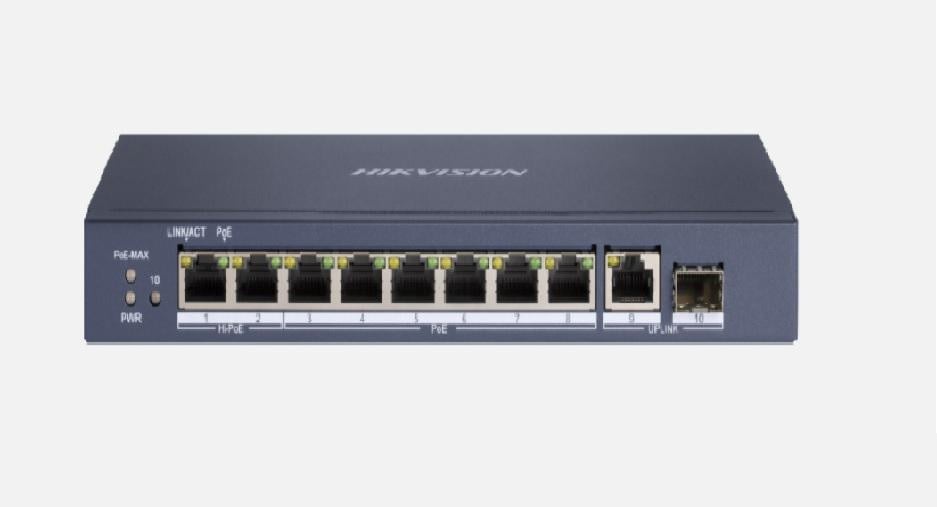

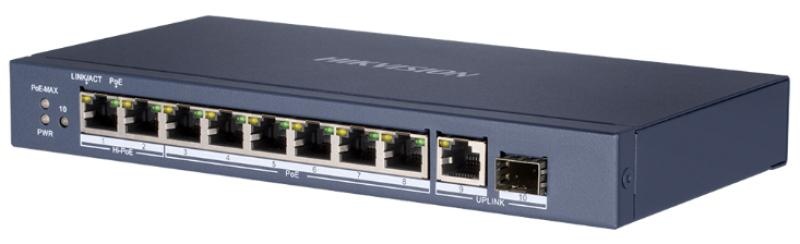

Switch Hikvision DS-3E0510HP-E, 8-port, PoE
394 71 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Switch 8 porturi POE Gigabit, Hikvision DS-3E0510HP-E, fara management, 6 × gigabit PoE ports, 2 × gigabit Hi-PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port, IEEE 802.3at/af/bt standard for Hi- PoE ports (Max. 90 W PoE output), IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output, Up to 300 m long-range transmission, PoE watchdog, MAC address table: 4 K, Internal cache: 1.5 Mbits, Hi-PoE port: Port 1 si 2 (Max. port power 90W), POE port: port 3-8 ( Max. port power 30W), PoE power budget: 110W, material metal, dimensiuni: 217.6 mm × 108.55 mm × 27.8 mm, greutate: 0.59 kg
Detalii
SKU
DS-3E0510HP-E
Categorii
Brand
PoE
Da
Montare in rack
Nu
Storage temperature (T-T)
-40 - 85 C
Product colour
Blue
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Harmonized System (HS) code
85176990
Housing material
Metal
Power over Ethernet (PoE)
Yes
Store-and-forward
Yes
Rack mounting
No
10G support
No
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Full duplex
Yes
Switch type
Unmanaged
Fiber ports quantity
1
Viteza transfer
Gigabit
Management
Nu
Porturi SFP
None
Operating temperature (T-T)
-10 - 40 C
Installed SFP modules quantity
0
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
MAC address table
4000 entries
Weight
590 g
Power consumption (max)
120 W
Power over Ethernet (PoE) ports quantity
6
Input current
2.22 A
DC input voltage
54 V
Total Power over Ethernet (PoE) budget
110 W
Porturi RJ 45
1 - 8
Width
217.6 mm
Depth
27.8 mm
Height
108.5 mm
