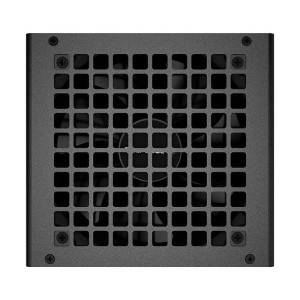

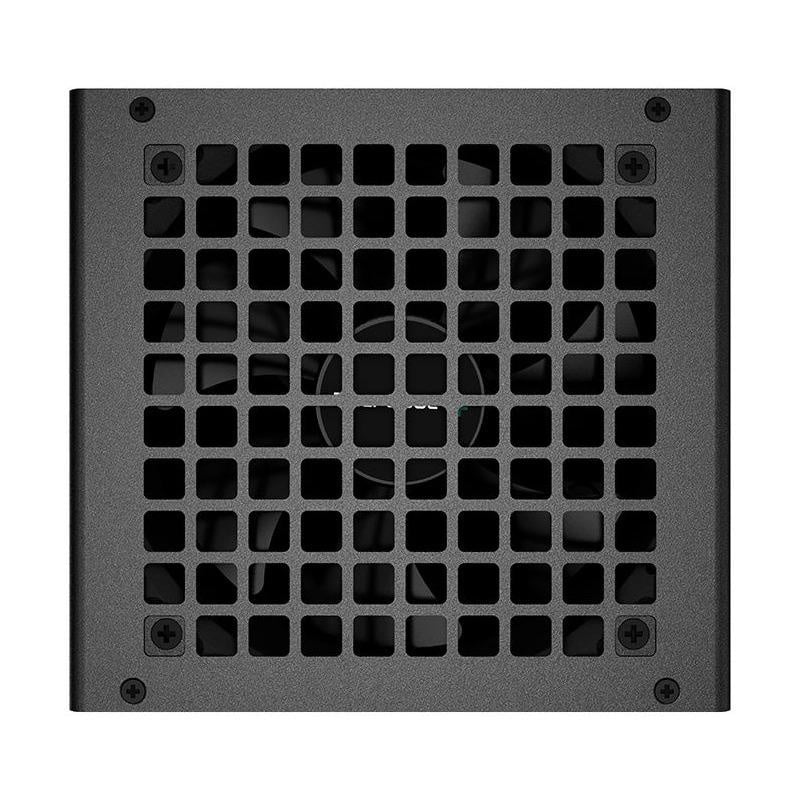

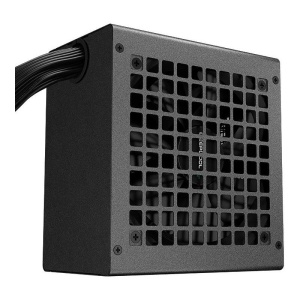

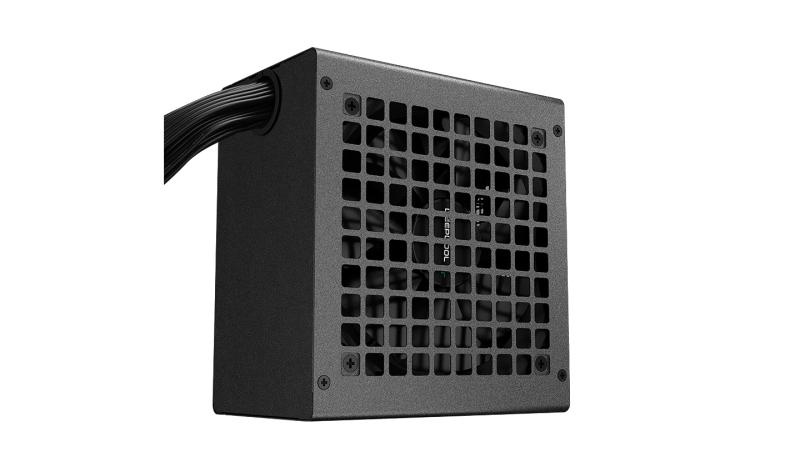

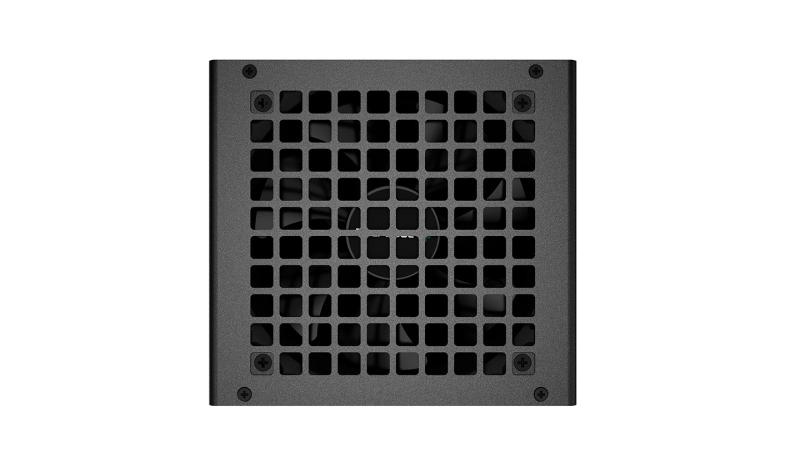

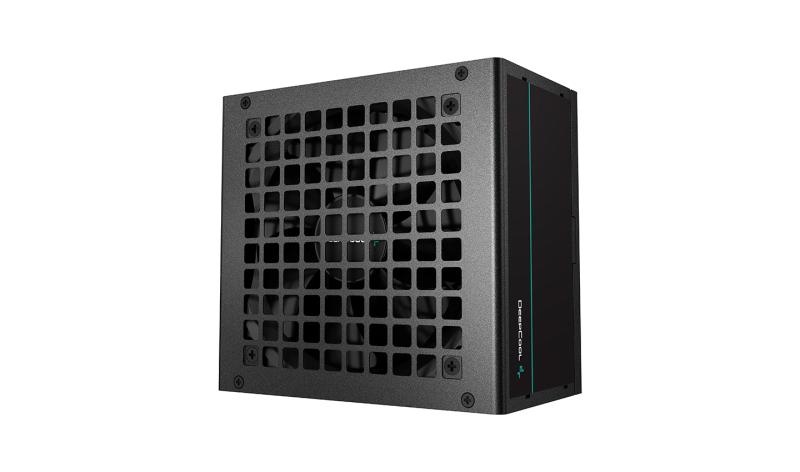

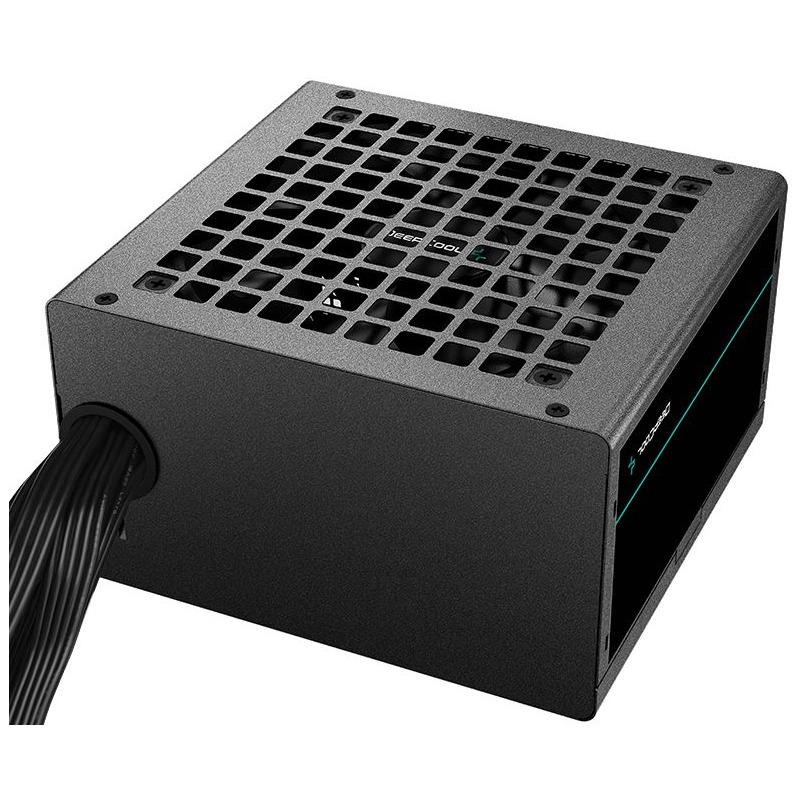

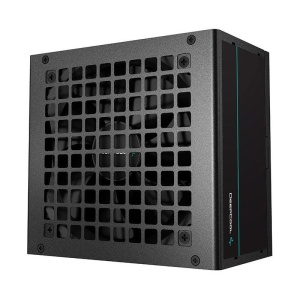

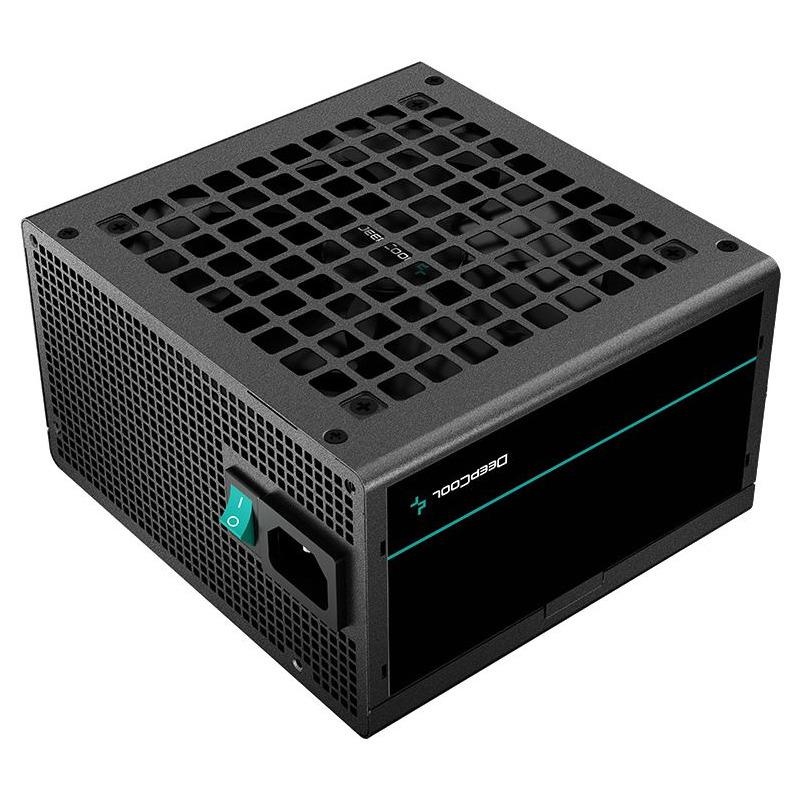

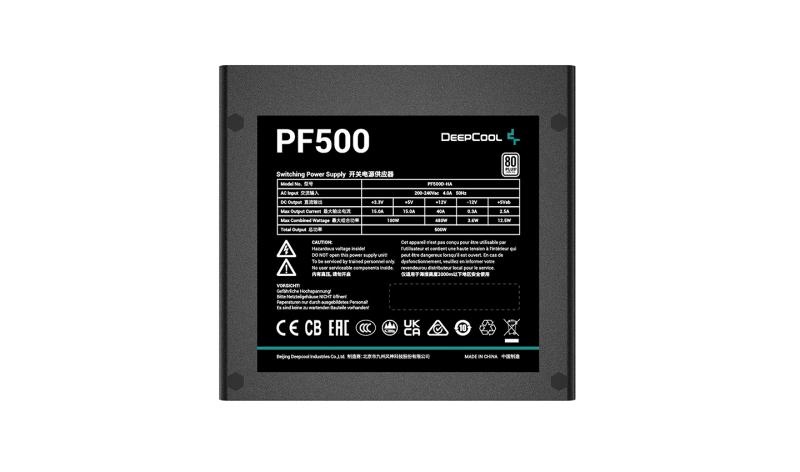

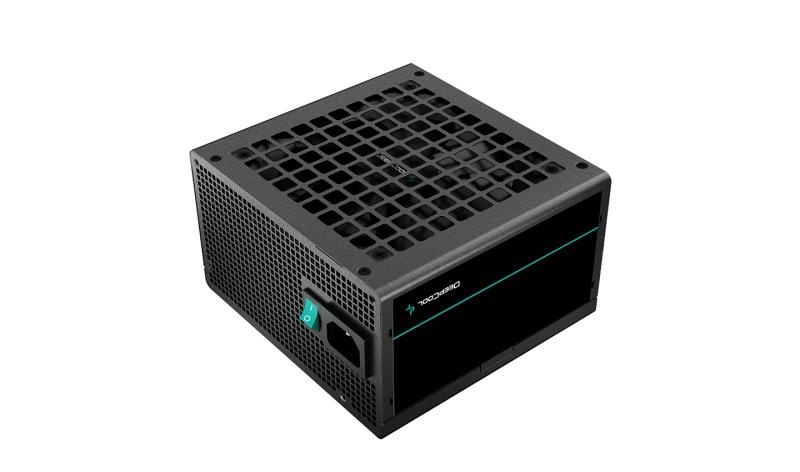

Sursa DEEPCOOL PF500 80 PLUS Standard

177 43 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU R-PF500D-HA0B-EU
Disponibil in stoc
Adauga la Favorite

Descriere

Sursa DEEPCOOL PF500 80 PLUS Standard, Active PFC+Double tube forward, Eficienta 85% sub incarcare tipica, Protectie OPP/OVP/SCP/UVP

Detalii

SKU
R-PF500D-HA0B-EU
Categorii
Surse PC
Brand
DEEPCOOL
Cables included
AC
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Mean time between failures (MTBF)
100000 h
Power supply unit (PSU) form factor
ATX
Number of SATA power connectors
4
Motherboard power connector
20+4 pin ATX
Height
86 mm
Width
150 mm
Depth
140 mm
Combined power (-12V)
3.6 W
Max output current (-12V)
0.3 A
PCI Express power connectors (6+2 pin)
2
EPS power connector (4+4 pin)
Yes
Motherboard power cable length
55 cm
Cabling type
Non-Modular
Hold time
16 ms

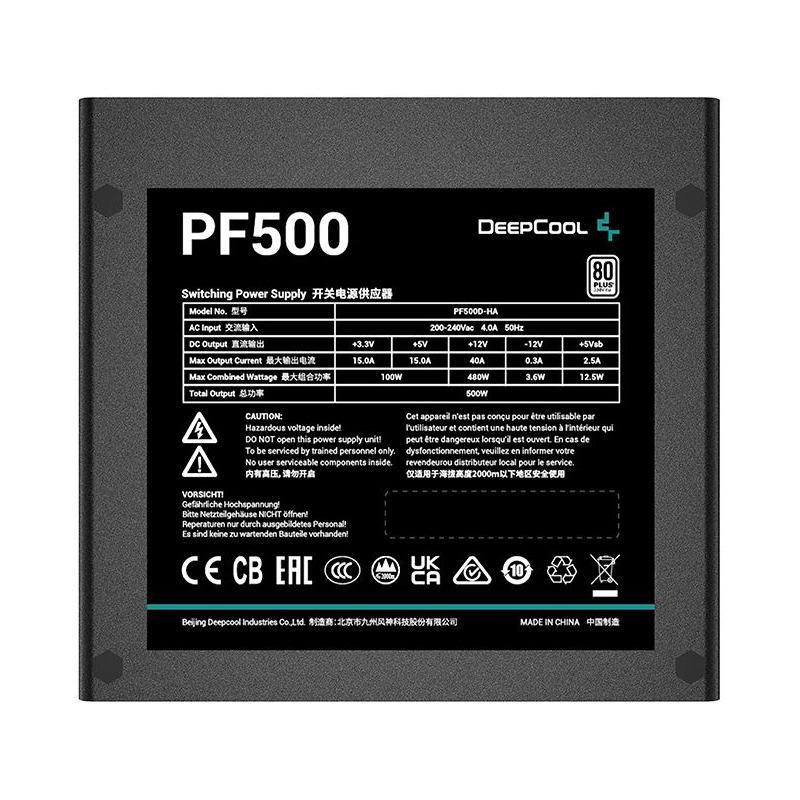

Combined power (+3.3V)
100 W
Combined power (+5V)
100 W
Combined power (+5Vsb)
12.5 W
Max output current (+5Vsb)
2.5 A
ATX version
2.4
Max output current (+3.3V)
15 A
Max output current (+5V)
15 A
Purpose
PC/Server
80 PLUS certification
80 PLUS
SATA power cable length
450,600,750,900 mm
Peripheral (Molex) power connectors (4-pin)
0
AC input frequency
50 Hz
AC input voltage
220 - 240 V
Power protection features
Over power, Over voltage, Short circuit, Under voltage
Total power
500 W
Combined power (+12V)
480 W
Max output current (+12V)
40 A
