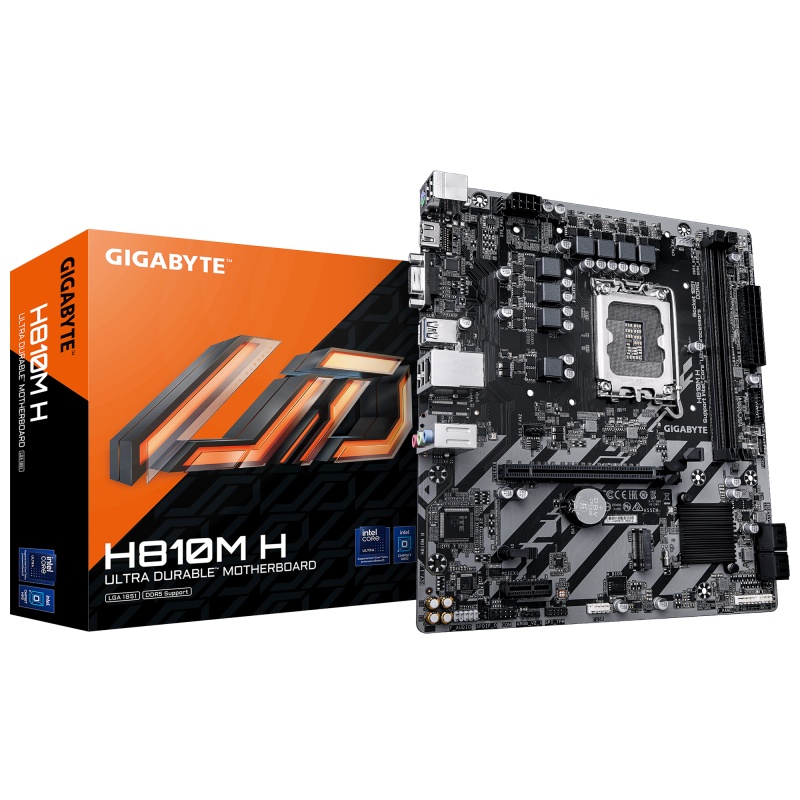

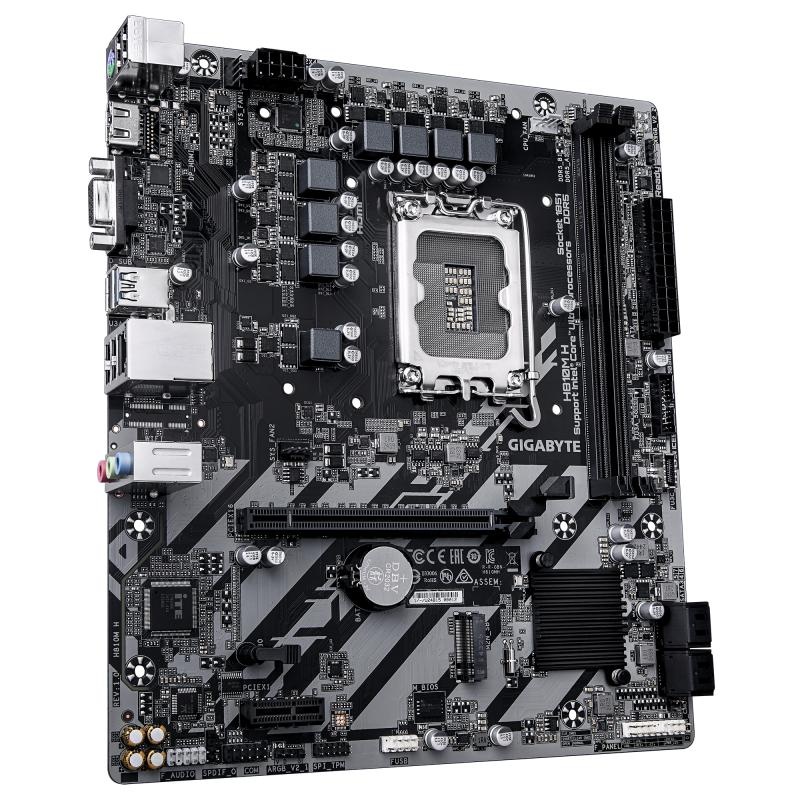

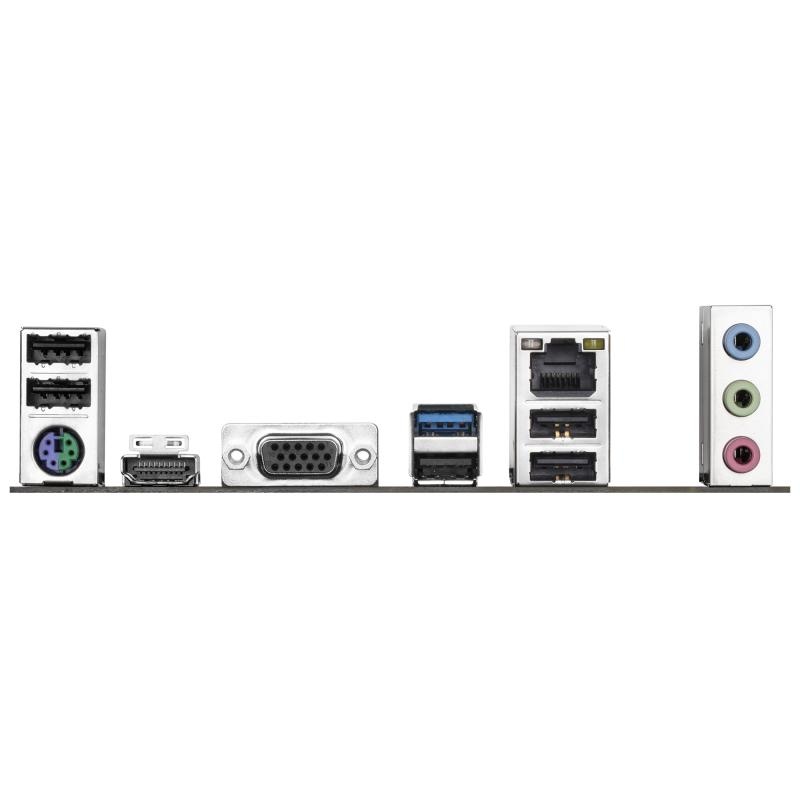

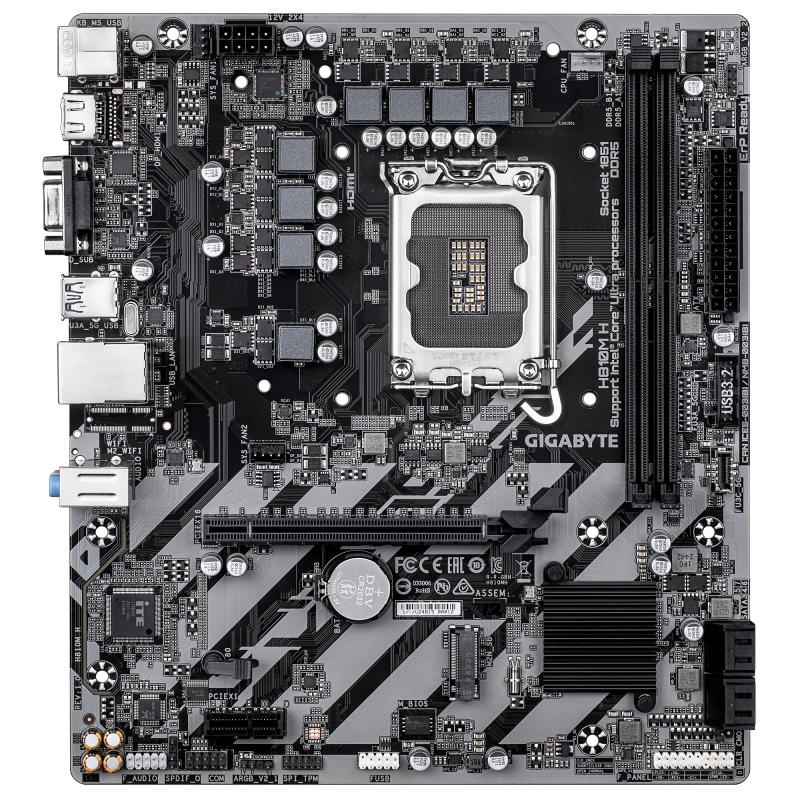

Placa de Baza GIGABYTE H810M H LGA1851, 2x DDR5, 1x HDMI 1x D-Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
484 88 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE H810M H LGA1851, 2x DDR5, 1x HDMI 1x D-Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
H810M H
Categorii
Brand
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Depth
215 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Maximum internal memory
128 GB
RAID support
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi
No
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
VGA (D-Sub) ports quantity
1
Headphone outputs
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
4.0
Motherboard chipset family
Intel
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of RGB LED pin headers
2
S/PDIF out connector
Yes
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Supported memory types
DDR5-SDRAM
ECC сompatibility
ECC & Non-ECC
Maximum internal memory per slot
64 GB
Memory slots type
DIMM
Unbuffered memory
Yes
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DVI-D ports quantity
0
PS/2 ports quantity
1
Number of HDDs supported
4
RAID levels
0, 1, 5, 10
Supported storage drive types
HDD & SSD
Height
35 mm
1st M.2 largest key size
2280
Motherboard chipset
Intel H810
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of CPU fan connectors
1
USB 2.0 connectors
1
Supported memory clock speed (max)
6400 MHz
Number of memory slots
2
Ethernet interface type
Gigabit Ethernet
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Maximum resolution
4096 x 2160 pixels
Package depth
265 mm
Package width
265 mm
Package height
54 mm
Serial port headers
1
USB 2.0 ports quantity
5
Cooling type
Passive
Number of M.2 (M) slots
1
Number of storage drives supported
5
Product colour
Dark brown
LAN controller
Realtek RTL8111H
Package weight
860 g
PCI-Ex16
1
MB-Format
micro-ATX
RAM-Slots
2
USB3
4-8
PCI-Ex1
1
Supported memory clock speeds
5600,6400 MHz
Weight
860 g
MB-Socket
LGA1851
Width
24.4 mm
