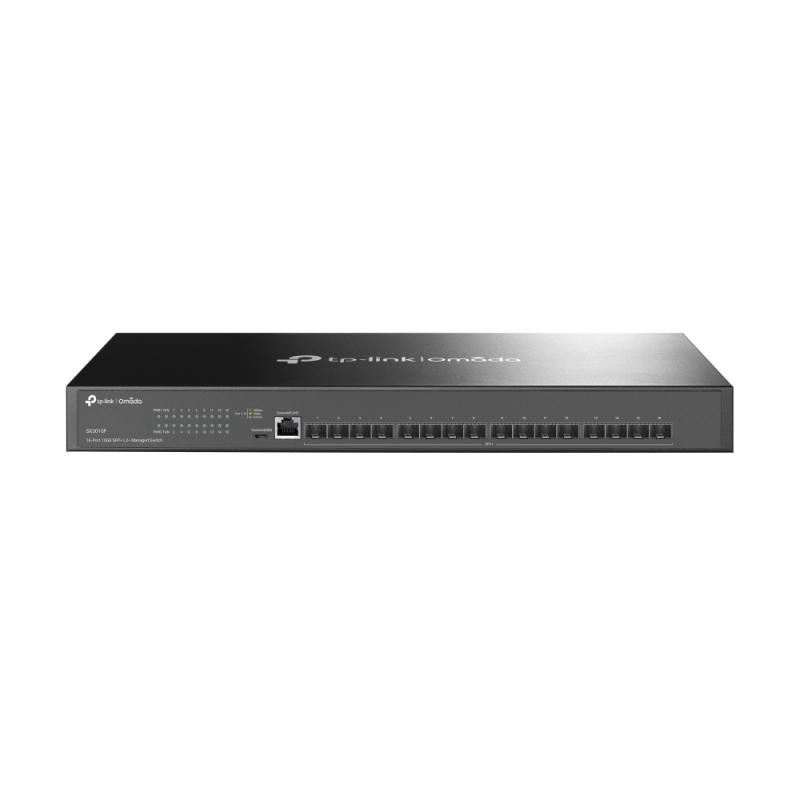

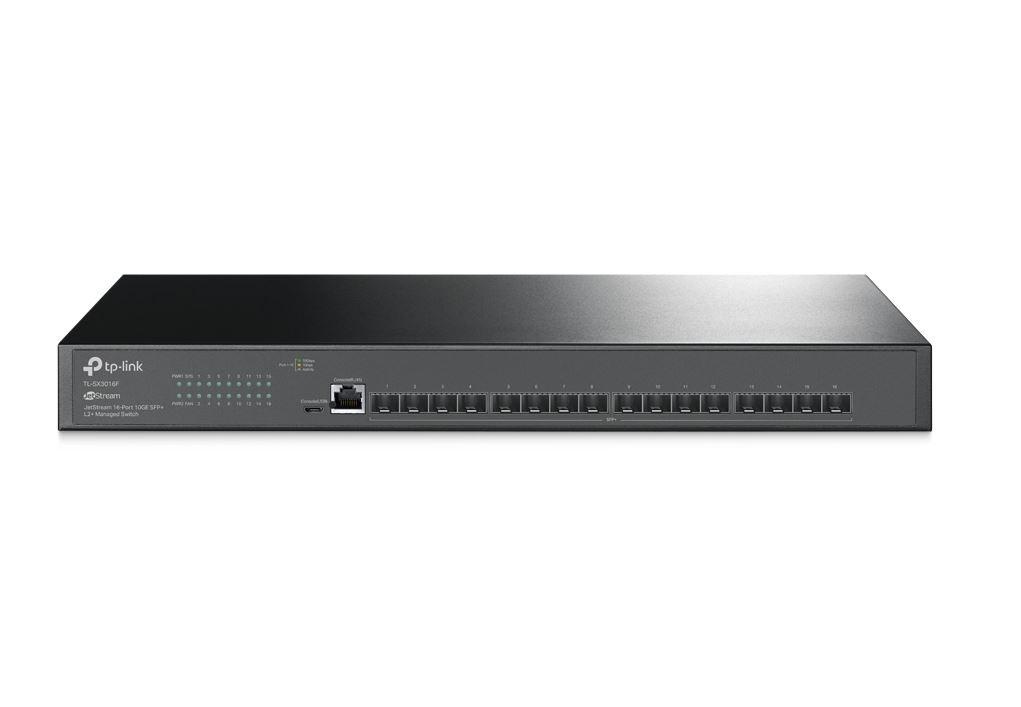

"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ,

2.858 99 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU TL-SX3016F
Disponibil in stoc
Adauga la Favorite

Descriere

"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies"

Detalii

SKU
TL-SX3016F
Categorii
Switch-uri
Brand
TP-LINK
LAN port type
10Gigabit
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Quick start guide
Yes
Package type
Box
Height
44 mm
LED indicators
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 45 C
Depth
220 mm
Jumbo frames support
Yes
Jumbo frames
9000
Rack mounting
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
ARP inspection
Yes
Web-based management
Yes
Switch type
Managed
Multicast support
Yes
IP routing
Yes
10G support
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
No
Storage relative humidity (H-H)
5 - 90%
Rack mount kit
Yes
Basic switching RJ-45 Ethernet ports type
No
Power source
AC
SSH/SSL support
Yes
Static port security
Yes
IGMP snooping
Yes
MAC address filtering
Yes
Access Control List (ACL)
Yes
Width
440 mm
Static route
Yes
Number of queues
8
MAC address table
32000 entries
Packet buffer memory
24 MB
Rate limiting
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Number of VLANs
4000
Broadcast storm control
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support
Yes
Power supply included
Yes
Loop protection
Yes
Installed SFP+ modules quantity
0
Certification
CE, FCC, ROHS
Head-of-line (HOL) blocking
Yes
BPDU filtering/protection
Yes
Power connector
DC-in jack
Traffic classification
Yes
Console port
RJ-45/micro-USB
IP-MAC-Port binding
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast Listener Discovery (MLD) snooping
Y
Management protocols
SNMPv1/v2c/v3, SNTP
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Switch layer
L2+/L3
Installed SFP modules quantity
0
SFP+ module slots quantity
16
SFP module slots quantity
16
Basic switching RJ-45 Ethernet ports quantity
0
Switching capacity
320 Gbit/s
Forwarding rate
238.08 Mpps
Heat dissipation
111.71 BTU/h
Power consumption (max)
32.74 W
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
